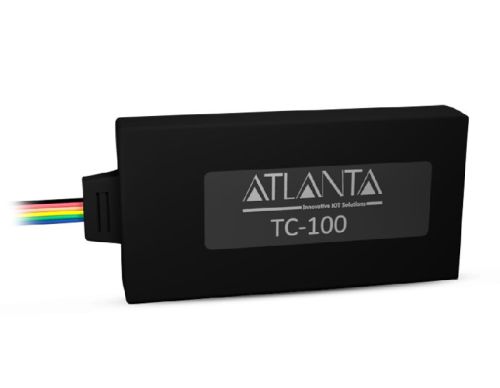

TC-100 Vehicle Tracker Device, Feature : Easy To Use, Fast Working, Low Power Consumption, Speedy

TC-100 Vehicle Tracker Device, Feature : Easy To Use, Fast Working, Low Power Consumption, Speedy

Listing ID #6865204

Get Latest Price

Humidity5% to 95% non-condensing at +40°C
Brand NameAtlanta
Country of OriginIndia
TypeVehicle Tracking Device
Preferred Buyer Location India only

View More Details

Send Enquiry

Product Details

Humidity 5% to 95% non-condensing at +40°C
Brand Name Atlanta
Country of Origin India
Type Vehicle Tracking Device
Color Black
Feature Easy To Use, Fast Working, Low Power Consumption, Speedy, Stable Performance
Condition New
Operating Temperature -10°C to +75°C
Supply Voltage 9-90V
Band Dual-Band GSM/GPRS/EDGE
Horizontal Position Autonomous < 2.5m
SIM Micro SIM
Memory 32Mb
Re acquisition Sensitivity -146dBm
Coding Scheme CS 1, 2, 3, 4
2 DRMS, Vertical ± 5m
I/O's Digtal Input: 2, Digtal Output: 1, Analog Input: 1
RF Power Class 4 (2W@850/ 900MHz), Class 1 (1W@1800/ 1900MHz)
Tracking Sensitivity -161dBm
Working Current Sleep Mode < 25mA, Active Mode < 200mA
SMS Point to Point MO & MT, SMS cell broadcast
Indicators 3 LED's (Power, GSM, GPS)
Hot Start < 1sec
GNSS GPS, GLONASS, BeiDou
Channels 22 Tracking/ 66 Acquisition Channel
Battery 120mAh Li-Po 3.7V
SBAS Supported
USB 2.0 Micro USB
Cold Start < 35sec
Velocity < 0.1m/s
Warm Start < 30sec
Peripheral Temperature Sensor, Fuel Sensor
GNSS & GPS Antenna Internal High Gain Antenna
Bluetooth BT5.0

TC-100 is an intelligent vehicle tracking device with internal high-gain GPS & GSM antennas and integrated credible battery backup. It is also equipped with 2 Digital inputs and 1 Digital Output to cover the overall requirements of the users. 1 ADC input helps in connecting the different analog sensors.

Panic /SOS button
High accuracy internal motion sensor
Small in size
Real-time tracking
Remote Data Logging When No GSM

Additional Information

Delivery Time 3-4 Week
