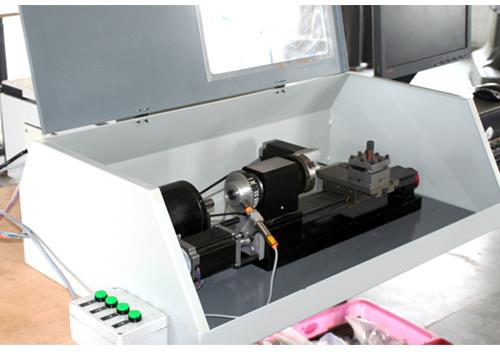

Table Top CNC LATHE

Table Top CNC LATHE

Listing ID #3940217

Get Latest Price
  • Rapid Feed Rate -Z600 mm / min
  • Repeatability± 0.02 mm
  • Tool Offset with Turretup to 8 tools
  • Feed override20% - 120%
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

GURUDATTA CNC verified-icon
Karve Nagar, Pune, Maharashtra
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Spindle Inside Taper MT1 Optional
  • Automatic Type Automatic
  • Type of Control system PC based system
  • Floor Area 700 mm x 500 mm
  • Backlash compensation Provided
  • Max. Machining Diameter 110 mm
  • Minimum Movement command 0.005 mm
  • Distance Between Centers 200 mm
  • Max. Iongitudinal Travel 240 mm
  • Rapid Feed Rate -X 600 mm / min
  • X Axis traverse 60 mm
  • Swing Over Carriaget 60 mm
  • Inputs System Metric/ Inch
  • Z Axis traverse 240 mm
  • Centre Height 60 mm
  • Real Time Tool Path Simulation Provided
  • Repeatability ± 0.02 mm
  • Interpolation Linear, Circular, elliptical and Parabolic
  • Table Length with 'T' Slot 150mm X 75mm
  • Control Axes Simultaneous axes control
  • Cross Slide Inclination 0 Degrees
  • Minimum increment 0.005 mm
  • Dwell (Seconds) Programmable
  • Spindle motor DC Motor, 180W
  • Automatic Lubrication Optional
  • Machine Specification Table Top CNC LATHE (Model - GCNL-01)
  • Feed override 20% - 120%
  • Spindle Speed 100 - 3000RPM Infinitely variable
  • Rapid Feed Rate -Z 600 mm / min
  • Speed override 40% - 160%
  • Threading Straight/Taper
  • Tool Offset with Turret up to 8 tools
  • Cutting Tool Size 6 X 6 mm Square
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

The Owner of the company is Mr. Pravin C. Jagtap. He has 13 years of rich work experience in CNC Machining, Production Development and Customers Job Development.
Company will provide the facilities.
Job work as company requirement.
Retrofitting.
Developed any part of company requirement.
Self Product of CNC Retrofit Kit for Lathe and Milling Machine.
