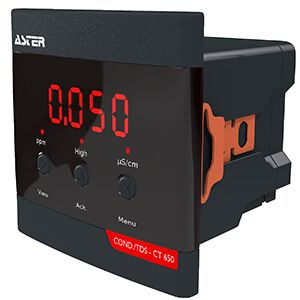

T - 650 conductivity meter

Listing ID #2722135

Conductivity meter is the direct measure of ionic concentration. The pure the water the lesser the conductivity. Salts, minerals and even dissolved gases contribute uniformly to the conductivity of a solution. This means that the conductivity can be used as an indicator of the amount of dissolved materials in a solution. Conductivity meter (ct-650):- features:- ideal for outdoor as well as panel mount application conductivitytds meter with inbuilt relay & alarm output with acknowledge facility programmable hysteresis avoids unnecessary chattering of pumpsolenoid valve etc. Programmable control delay time automatic temperature compensation (optionally available) 4-20 ma output for panel indicationplc (optionally available) communication ready for monitoringdata logging (optionally available) available sizes:- 0-19.99 âµscmâ² 0-1999 âµscmâ² 0-9999 âµscmâ² technical specifications:- physical dimensions - 105 x 105 x 130 mm cutout size - 92*92 mm enclosure - abs weather proof ip 65 mounting - field panel input supply - 230 v a.c.5060 hz or 110 v a.c. Or 24 v d.c. Alarm - in built buzzer with blinking led for high cond.tds indication relay - 1 no for high(programmable through entire range with control delay & hysteresis) 5a @ 230vac control operation - alarm auto reset accuracy - â± 2% of fsd resolution - 0.001 0.01 0.1 1 depending on range display - 4 digit 7 segment led or 16 x 2 alphanumeric backlite lcd calibration set point - using front panel keys terminals - screwed on rear side measuring range - 0-1999(other ranges available) display mode - âµscmâ² or ppm output - 4-20ma (optional) rs 485 (optional)
