Syringe Pump

Listing ID #254958

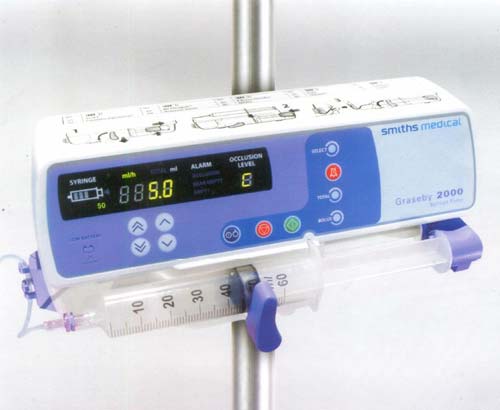

We hold an expertise in manufacturing and supplying world class Syringe Pumps. Recognized in operating theatres, intensive care units and general wards across the country, Graseby'' Infusion Syringe Pumps have been trusted by healthcare professionals over years. These Graseby'" 2000 range of Syringe Pumps provide simple, reliable and easy to use infusions for a wide range of clinical therapy areas. Made using premium grade raw materials, our Syringe Pumps are surely the right choice to rely upon. Features

• Syringe Loading Guidelines : The on-pump syringe loading guidelines provide clear instructions to support clinicians where they need it, at the bedside.
• Programming Sequence : The 4 step programming sequence allows for quick and simple programming thus, the clinicians can spend more time with the patient, not the pump.
• Added Safety : The Graseby'" 2000 range of Syringe Pumps also offers a variety of safety features including:
• Post Occlusion Bolus Reduction : In the event of an occlusion alarm the pump will minimize the potential post occlusion bolus by reducing the pressure in the patient tubing.
• Patient Tubing Holder : The patient tubing holder reduces the risk of accidental syringe displacement if the patient line is inadvertently pulled or caught.
• Wide Range Of Alarms : The Syringe Pumps feature a wide range of audio and visual alarms including 'syringe error' and 'barrel clamp open' to ensure clinician awareness and prompt intervention where necessary.

» Specifications

Weight	2.1 kg lapprox, including pole clamp]
Dimensions	307mm x 133mm x 128mm [not including pole clamp]
AC Power Supply	220 - 230V or 110 - 120V [not user adjustable] at 50 - 60Hz
Battery Type	Rechargeable 12 V DC Nickel Metal Hydride Ni-MH
Battery Life	4 hours at 5ml/h
KVO Rate	0.5ml/hr [continuous mode, not VTBI]
Programming Range
Infusion Rate	0.1 ml/h to 1200ml/h dependent on syringe size
Volume To Be Infused (VTBII)	0.1 ml to 9999ml
Occlusion Sensing - Pressure Levels:	Approximate Pressure:
Low (L1)	300mmHg ± 100mmHg 40.0kPa ± 13.3kPa
Medium (CI)	500mmHg ± 100mmHg 66.7kPa ± 13.3kPa
High (HI)	800mmHg ± 100mmHg 106.7kPa ± 13.3kPa
Drive Accuracy	±2% [Linear Accuracy]
