Swivel Elbow can be easily rotated to 360 degrees and used for connecting pipes and similar other fittings. Made from high-grade materials like iron, carbon steel, etc., Swivel Elbow is appreciated for durability, high strength, leak-proof sealing and corrosion resistance. Swivel Elbow is applied in different industries such as petroleum, chemical, gas, construction, and many others.

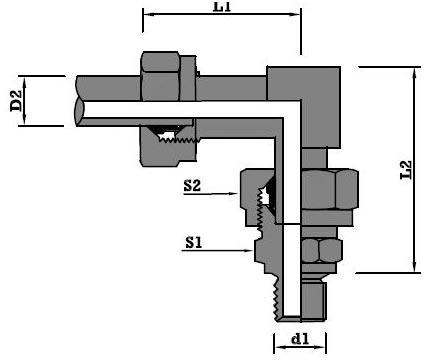

| D2 | D1 | L1 | L2 | S1 | S2 | Code No. |
|---|---|---|---|---|---|---|
| 6 | 1/8" | 27 | 34.5 | 14 | 14 | SEGL6 |
| 8 | 1/4" | 29 | 37.5 | 17 | 17 | SEGL8 |
| 10 | 1/4" | 30 | 40 | 19 | 19 | SEGL10 |
| 12 | 3/8" | 32 | 43 | 22 | 22 | SEGL12 |
| 15 | 1/2" | 36 | 47.5 | 24 | 27 | SEGL15 |
| 18 | 1/2" | 40 | 50.5 | 27 | 32 | SEGL18 |
| 22 | 3/4" | 44 | 55.5 | 32 | 36 | SEGL22 |
| 28 | 1" | 47 | 61 | 41 | 41 | SEGL28 |
| 35 | 1¼" | 56 | 72 | 50 | 50 | SEGL35 |
| 42 | 1½" | 63 | 79 | 55 | 60 | SEGL42 |
| D2 | D1 | L1 | L2 | S1 | S2 | Code No. |
|---|---|---|---|---|---|---|
| 6 | 1/4" | 31 | 40 | 19 | 17 | SEGS6 |
| 8 | 1/4" | 32 | 44 | 19 | 19 | SEGS8 |
| 10 | 3/8" | 34 | 47 | 22 | 22 | SEGS10 |
| 12 | 3/8" | 38 | 50 | 24 | 24 | SEGS12 |
| 14 | 1/2" | 40 | 55 | 27 | 27 | SEGS14 |
| 16 | 1/2" | 43 | 56 | 27 | 30 | SEGS16 |
| 20 | 3/4" | 48 | 65 | 32 | 36 | SEGS20 |
| 25 | 1" | 54 | 73.5 | 41 | 46 | SEGS25 |
| 30 | 1¼" | 62 | 80 | 50 | 50 | SEGS30 |
| 38 | 1½" | 72 | 93.5 | 55 | 60 | SEGS38 |
