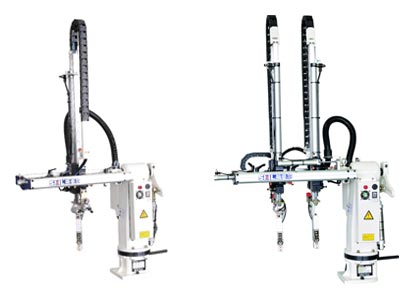

Contact Supplier(Model) | (Unit) | SS-550(V) | SS-650(V) | SS-550D | SS-650D | |
---|---|---|---|---|---|---|
(Type) | (Single Arm Label) | (Double Arm lable) | ||||
(I.M.M.range) | Ton | 50~120 | 100~180 | 50~120 | 100~180 | |
(Vertical Stroke) | MM | 550 | 650 | 550 | 650 | |
Crosswise Stroke) | MM | 120 | 120 | 120 | 120 | |
Swing angle | Degree | 45~90 | 45~90 | 45~90 | 45~90 | |
(Gripper rotation angle) | Degree | 90 | 90 | 90 | 90 | |
(Max,Loding) | Kg | 2 | 2 | 2 | 2 | |
(Dry Take Out Time) | Sec | 0.7 | 0.8 | 0.7 | 0.8 | |
(Dry Cycle Time) | Sec | 3.2 | 3.4 | 4.4 | 4.6 | |
(Drive System) | (Pneumatic Cylinder) 5(0.5)kgf/cm² |
|||||
(Working Pressure) | ||||||
(Air Consumption) | NI/cycle | 1.0 | 1.2 | 1.4 | 1.6 | |
(Power Source) | Ac | AC50/60HZ | ||||
(Power Capacity) | Kva | 0.2 | 0.2 | 0.2 | 0.2 | |
(Net Weight | Kg | 40 | 42 | 50 | 52 |
D:Double Arm Lable
V:With vacuum generator and vacuum EOAT(These models require additional air consumption of 10 NI/cycle)
(Model) | A | B | C | D | E | F | G | H | J | K | L | M |
---|---|---|---|---|---|---|---|---|---|---|---|---|
SS-550D |
1370 |
178 |
345 |
540(580) |
182 |
280 |
440(480) |
120 |
80 |
150 |
140 |
550 |
SS-650D |
1470 |
178 |
345 |
540(580) |
182 |
280 |
440(480) |
120 |
80 |
150 |
150 |
650 |
SS-650D |
1570 |
178 |
345 |
540(580) |
182 |
280 |
440(480) |
120 |
80 |
150 |
150 |
750 |
