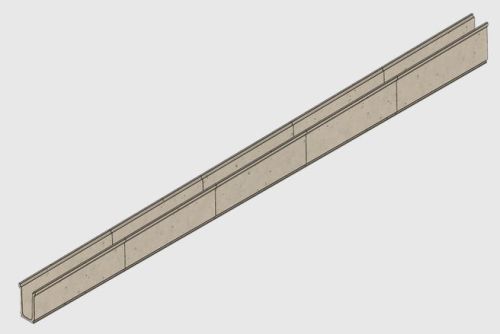

Contact SupplierWe make available superior grade Swift Self Sloping Channels in varying sizes. With the assistance of sophisticated packaging system and skilled personnel, we are able to provide damage-free products to the clients as we ensure complete safety during packaging. We have garnered wide acclaim for bringing forth cost-effective product range that is available at Pune(India).
Material | Polymer Concrete |
---|---|
Length | 100cm |
Width | 17cm |
Height | 10.2cm to 30.2cm |
Weight | 13kg to 28kg |
Nominal Width | 11cm |
Slope | 0.01 |
Joint Type | Butt with male-female |
Fastening | Bolt |
Load capacity | D400 |
Edge Type | Built in Polymer Concrete Edge |
Product No. | Description | Height (mm) | Weight (kg) |
---|---|---|---|
10 | Channel 1000mm, without slope | 102 | 13 |
20 | Channel 1000mm, without slope | 202 | 20 |
30 | Channel 1000mm, without slope | 302 | 28 |
1100 | Channel 1000mm, with slope | 112 | 13.5 |
1200 | Channel 1000mm, with slope | 122 | 14 |
1300 | Channel 1000mm, with slope | 132 | 15 |
1400 | Channel 1000mm, with slope | 142 | 15.5 |
1500 | Channel 1000mm, with slope | 152 | 16 |
1600 | Channel 1000mm, with slope | 162 | 16.5 |
1700 | Channel 1000mm, with slope | 172 | 17.5 |
1800 | Channel 1000mm, with slope | 182 | 17.5 |
1900 | Channel 1000mm, with slope | 192 | 18 |
2000 | Channel 1000mm, with slope | 202 | 19 |
2100 | Channel 1000mm, with slope | 212 | 20 |
2200 | Channel 1000mm, with slope | 222 | 20.5 |
2300 | Channel 1000mm, with slope | 232 | 22 |
2400 | Channel 1000mm, with slope | 242 | 22 |
2500 | Channel 1000mm, with slope | 252 | 23 |
2600 | Channel 1000mm, with slope | 262 | 23 |
2700 | Channel 1000mm, with slope | 272 | 24.5 |
2800 | Channel 1000mm, with slope | 282 | 24.5 |
2900 | Channel 1000mm, with slope | 292 | 25 |
3000 | Channel 1000mm, with slope | 302 | 27 |
