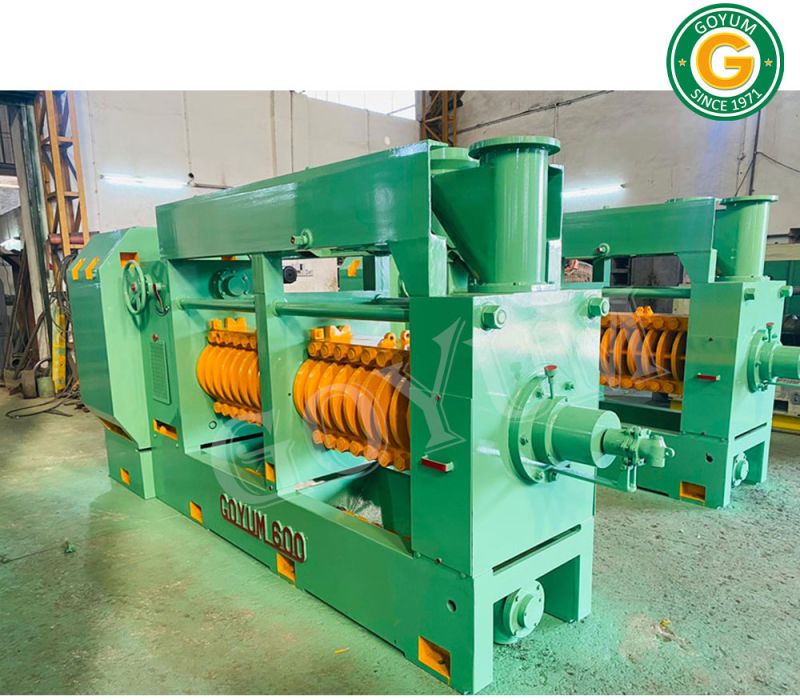

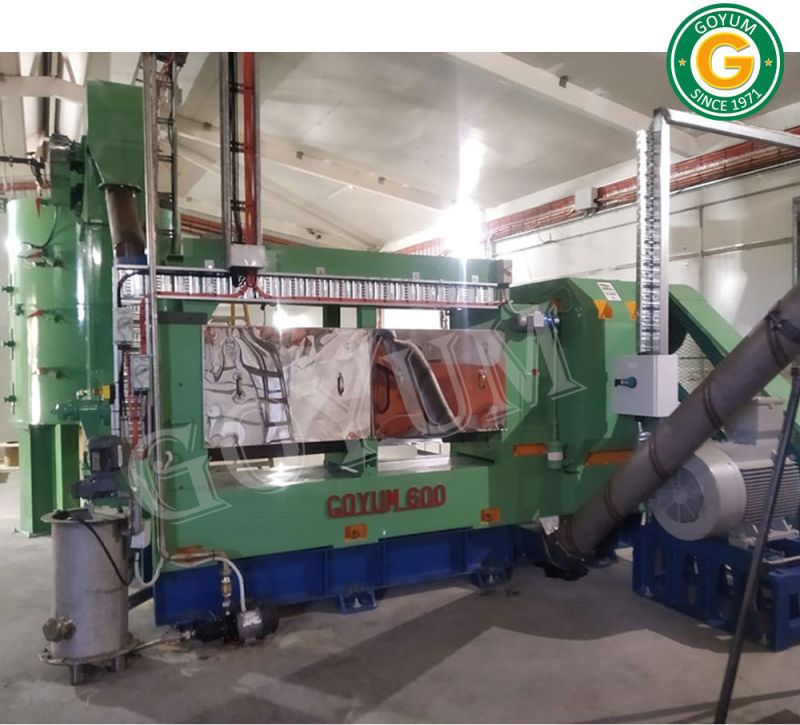

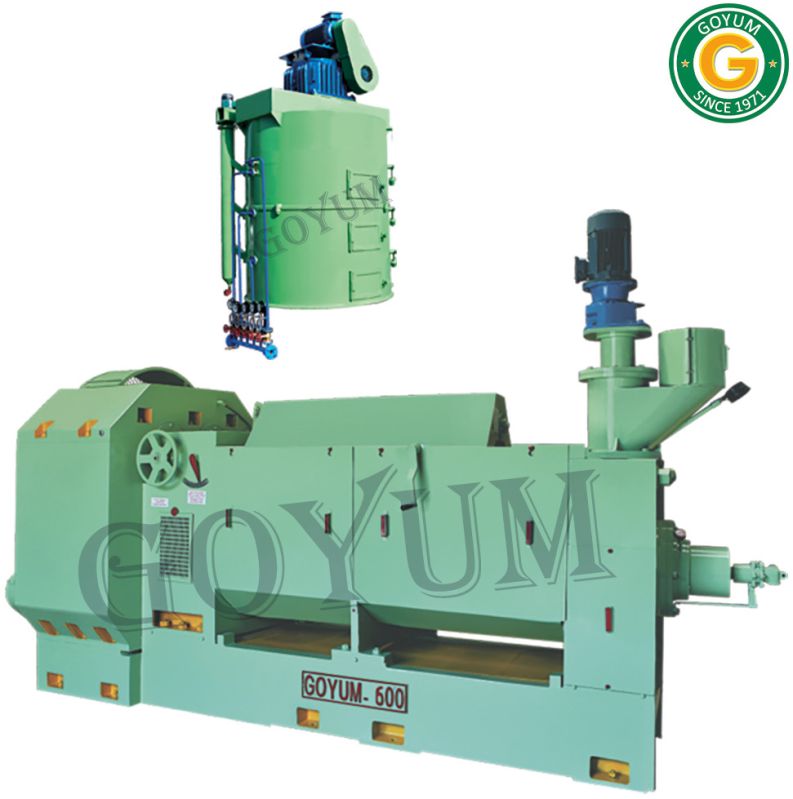

Sunflower Seed Oil Pressing Machine, Model Number : GOYUM 600

Name: Sunflower Seed Oil Pressing Machine
Brand: GOYUM
Price: 6557000 INR
Availability: InStock

₹ 65.57 Lakh - ₹ 69.72 Lakh / piece

Company Information

View Number

Ask for more detail from the seller

Report incorrect details

TypeOil Press
Voltage220V, 380V, 440V
CertificationISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
ColorGreen
Driven TypeElectric
Brand NameGOYUM
ConditionNew
Operating TypeSemi Automatic
UsageMulti Seed Oil Extraction
Model NumberGOYUM 600
Capacity40 - 45 Ton In 24 Hours In Pre-Pressing,30 - 35 Ton In 24 Hours In Single & Final Crushing,80 – 100 Machines Annually
Packaging TypeWooden Box
SpecialitiesEasy To Operate
Dimension (LxWxH)14’ X 5’6” X 16’6”
Machine Weight11500 Kgs
Warranty1 Year Against Manufacturing Defects
Country of OriginIndia
I Deal InNew Only
Expeller Motor3 Phase, 100 HP, 1440 RPM
Kettle Motor3 Phase, 20 HP, 1440 RPM

Sunflower Seed Oil Pressing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base.
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long
Worm Assembly	Hard Face welded along with Discharge Ring and Sliding Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled.
Crammer Shaft	For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor.
Round Kettle (Cooker)	4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers.
Cake Thickness	Can be Adjusted on Running Machine.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Payment Terms L/CT/T
Port of DispatchMumbai / Mundra
Packaging DetailsWrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)
Delivery Time20 – 25 days, but confirmed delivery time will be provided at the time of confirmation.
