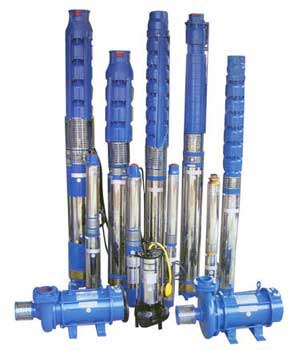

Contact SupplierWe offer the most efficient Submersible Pump to the clients. Specially designed square thread in the Submersible Pump offers excellent leak proof gripping under high tensile load for longer time and is easy to fit even after repetitive installations. Also, the carefully designed and developed “O†ring, seal rings and flat ring in the Submersible Pump prevent leakage and vibrations. Lowering tool, bottom adaptor, pump guard, pipe clamp, bore cap, and flange are some of the pipe accessories of the Submersible Pump. We supply highly efficient and smoothly working Submersible Pump at competitive prices.
Size | Outer Diameter (in mm) | O.D. Over Connection Max. (mm) | Pipe Type | Recommended Installation Depth (Up to feet) | Safe Pulling Load with Chain Pulley (in kgs.) |
---|---|---|---|---|---|
1" (25mm NB) | 33.40 + 0.13 | 51 | Medium Standard | 300 600 | 750 1300 |
1 ¼" (32mm NB) | 42.16 + 0.13 | 60 | Medium Standard Heavy | 300 600 900 | 1100 1500 1600 |
1 ½" (40mm NB) | 48.26 + 0.15 | 68 | Medium Standard Heavy | 250 600 900 | 1250 1700 2000 |
2" (50mm NB) | 60.20 + 0.15 | 83 | Medium Standard Heavy | 250 600 900 | 1500 2100 2850 |
2 ½" (65mm NB) | 76.10 + 0.18 | 96 | Medium Standard Heavy | 250 600 900 | 1900 2700 4200 |
3" (80mm NB) | 88.90 + 0.20 | 111 | Medium Standard Heavy | 200 500 800 | 2800 4000 5700 |
4" (100mm NB) | 114.30 + 0.23 | 141 | Medium Standard Heavy | 200 500 800 | 4100 5700 9000 |
Note : Technical Specifications are for reference and not forming a part of terms and conditions offered. It may very within tolerance limits |
