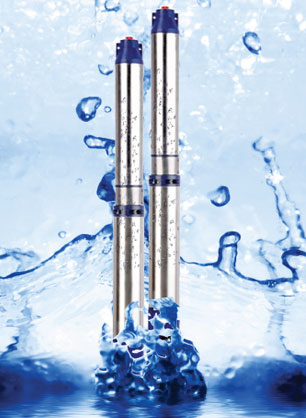

Submersible Motor Pumps

Listing ID #3992688

Get Latest Price

PhaseSingle Phase
LiquidClear Water
Max outer Dia72mm
Total HeadUpto 33 Meters
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Phase Single Phase
Voltage Band Voltage Band 180 to 240 Volts
Capacity Upto 90 LPM
Liquid Clear Water
Speed 3000 rpm ( Syn. Speed )
Total Head Upto 33 Meters
Discharge Outlet Size 32mm
Range 0.37 to 0.94 KW (0.5 to 1.25 HP)
Max outer Dia 72mm
Total Head Range Upto 100 Meters

SABION offers a wide range of Submersible Pumpsets suitable for 75mm borewell. SABION Submersible Pumpsets are specially designed, with the use of latest manufacturing techniques, to meet the water requirements of different needs in Domestic & Agricultural use.

FEATURES

Motors

Energy Efficient & Consistent Performance
Totally enclosed, water filled, squirrel cage induction motor
Dynamically balanced rotor & special epoxy paint to ensure corrosion resistance
Seals & Bushes are well protected by sand guards
Capacitor Start & Run for AC supply
Special water resistant PVC insulated high quality copper winding wire to withstand wide voltage fluctuation
Stainless Steel rotor shaft
Specially designed thrust pad

Pump

Corrosion and abrasion resistant parts are made of
stainless steel, high strength engineering polymers and special alloy materials
Impeller & diffusers are high quality 30% glass filled engineering polymer
Designed for optimum efficiency
Modular construction
NRV fitted in discharge outlet to prevent backflow
Pumps are designed for sand friendly operations

APPLICATION

Domestic Water Supply
Irrigation, Sprinkler & Drip Irrigation
Gardening, Nursery, Fountains
Residential Bungalows
High Story Buildings & Complexes
Dairies, Cattle & Poultry farms
Unshaped and crooked 75mm & above Borehole

Pumps / Stator Jacket	Stainless Steel
Suction Casing	Cast Iron
Stage Casing	Noryl with SS wear ring
Impeller	Noryl
Shaft / Coupling Sleeve	Chrome Steel
Bearing / Valve Body	Cast Iron
Winding Wire	Polywrap Copper
Thrust Bearing	Carbon vs Cr. Steel

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Sabion is one of the trusted brand of submersible pumpsets in India. With the deep rooted experience we offer round the clock sale & service support with the wide spread dealer network in India
