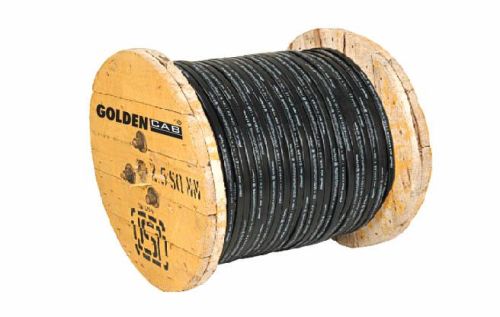

Submersible Cable

Listing ID #4168658

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

For trouble free working these connecting cables are just as important as winding wires for the submersible pump & motors. GOLDEN CAB 3 core flat cables are Manufactured keeping in mind the severely difficult conditions in which they are required to operate. The wires are drawn, annealed and bunched properly to ensure long life. Each of these three flexible copper conductors are insulated with a specially formulated PVC compound and the cores are laid-up in flat paralled position. The outer sheath of the cable is made from special grade of resistant PVC compound impervious to water, grease oil etc. Rigid test & checks at every stage from raw material through production and finally up to the finished product insure that GOLDEN CAB cables are of highest quality to meet the International Standard.

Conductor		Insulation		Sheath Overall Dimensions		Conductor Resistance @20°C (max.)ohms/km.	Current Carrying Capacity @ 40°C (Amp.)
Area (Nom.) Sq. mm.	No./size of Wires mm	Thickness (Nom) mm.	Thickness (Nom) mm.	Width 'W' mm	Thickness 'T'mm	Conductor Resistance @20°C (max.)ohms/km.	Current Carrying Capacity @ 40°C (Amp.)
1.5	22/0.3*	0.6	0.90	11.70	5.40	12.10	14
2.5	36/0.3*	0.7	1. 00	13.50	6.20	7.41	18
4	56/0.3**	0.8	1.00	15.20	6.50	4.95	2

Conductor		Insulation		Sheath Overall Dimensions		Conductor Resistance @ 20°C (max.) ohms/km.	Current Carrying Capacity @ 40°C (Amp.)
Area (Nom.) Sq. mm.	No./size of Wires mm	Thickness (Nom) mm.	Thickness (Nom) mm.	Width 'W' mm	Thickness 'T'mm	Conductor Resistance @ 20°C (max.) ohms/km.	Current Carrying Capacity @ 40°C (Amp.)
6.0	84/0.3	1.0	1.15	17.30	7.60	3.30	31
10.0	140/0.3	1.0	1.40	23.70	9.90	1.91	42
16.0	226/0.3	1.0	1.40	28.00	11.40	1.21	57

p	5.0	7.5	10.0	12.5	15.0	17.5	20.0	25.0	30.0	35.0	40.0	45.0	50.0	55.0	60.0	65.0	70.0	75.0	80.0
Amp	7.5	11.0	14.9	18.9	22.5	25.2	28.4	35.6	42.3	50.4	58.1	62.1	67.5	73.8	81.0	87.3	93.6	100.80	108.0

Ambient Temperature C	30	35	40	45	50
Operating Factor	1.09	1.04	1.00	0.95	0.77

Company Details

GOLDEN CAB an ISO 14001 & 9001 Certified Company is one of the leading manufacturer of Wires and Cables in India.
GOLDEN CAB has emerged as one of the best quality manufacturer of PVC Insulated Wires and Cables with the help of strong R&D and skillful labour. The company maintains the quality and standard according to the market needs.
Moreover, our sound infrastructure, professional management required workforce has enabled us in undertaking & completing orders of all stature, within the time limit. We have been successfully fulfilling the need of not only Indian but International market as well.
