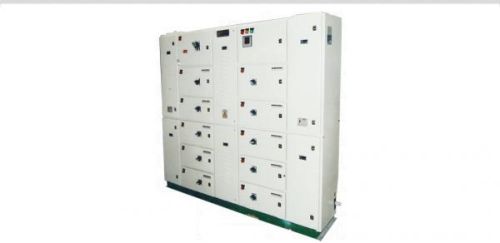

Sub distribution panel

Listing ID #4386159

Get Latest Price

Bus BarAluminium or Copper
Rated Insulation1000v
Operational Voltage110/230v 415v AC
ApplicationsOperation, Control & protection of distribution network
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Applications Operation, Control & protection of distribution network
Bus Bar Aluminium or Copper
Rated Insulation 1000v
System 3 Phase, 3 or 4 wire, 50Hz
Rated Service Voltage 690v
Rated Current Upto 3200 Amps
Bus Bar System Interleaved above 1600A
Ref. Standard IEC61439-12009, IS:8623
Feeder Configuration Semi Drowout or Fix Type
Operational Voltage 110/230v 415v AC
Degree of Protection IP42-IP54
Ambient Temperature 45 Deg C
Short Time Current 50KA for 1Sec, 105KA peak
Type Tested for Short Time Current withstand Temperature Rise Degree of Protection
Form of Sepration Upto 3B/4B (Optional Type 5)

The sub distribution panel or board consists of a basic frame with all the necessary electrical components such as main isolating switches, emergency shut-down mechanism, RCDs, line circuit breakers, controls and contactors for individual workgroups. The distributor can supply multiple workgroups with electrical power independently. We design & manufacture the Sub Distribution Panel according to the Customers’ need through reliability, selectivity, durability & time of taking action to Product Quality which comply with cost effective, long life and application-wise.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Starting out as a small family business from an electrical shop in 1985 under Mr. Ranjit Singh, Rupinder electrical Works (R.E.W.), Longowal, has grown into a manufacturing plant situated at longowal (Dist. Sangrur) employing skilled labor and professionals. The journey of R.E.W. started in 2012 taking over the existed family business. Under this leadership we have maintained strong and lasting relationship with our customers.
As an electrical manufacturer and maintenance, leading both in domestic and commercial sectors, we pride ourselves on having the good relationship with our long term and repeat business customers. We believe that quality and reliable service has proved these long term relationships with our customers. We believe in understanding our customer’s individual requirements in order to ensure that we provide them with the best solution based on our technical knowledge and experience.
OUR SERVICES
We believe in providing the customer with best quality of products. We thrive on building great customer relationship, which we believe is a result of experienced, and passionate team of engineers and sales.
We believe that no job is too big or too small which extends our service range from simple task of installation of domestic starter Motors to manufacturing customized distribution panels. We believe in working closely with the customers to provide on time completion of task and in budget with the use of high quality range products. Through our skills and experience we believe in building on going and lasting relationship with our customers.
