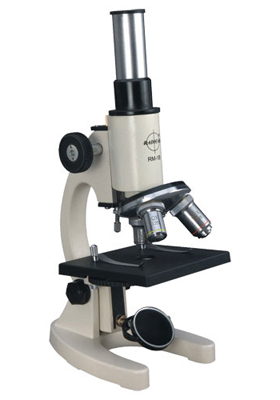

Contact SupplierThe structure of microscopic specimens becomes visible to the naked eye by taking the projection on the screen, during observation and demonstration to a group of students. The microscopes are compact in design and can easily contrast and distortion free magnified images on a fine ground glass screen.
Body - Monocular Fixed Straight Tube, length 160mm.
Nosepiece - Triple revolving nosepiece with accurate centering and positive click stops
Stage - Detachable Mechanical stage for X-Y cross movement 50X75mm, fully graduated vernier scale.
Illumination - 20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator.
Objectives - Achromatic 4X - 10X- 40XSL.
Eyepieces - Huygenian 10X and 15X
Screen - 150mm diameter Glass Projection Screen is provided, can be rotated over 360° on Microscope tube.
Model PRM-11 - All specifications are as per PRM-11A but has only 2 Objectives 10X & 40X. Screen size 100mm and without mechanical stage.
Packing - The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Cleaning Brush, Filter, Immersion Oil and Operating Manual.
