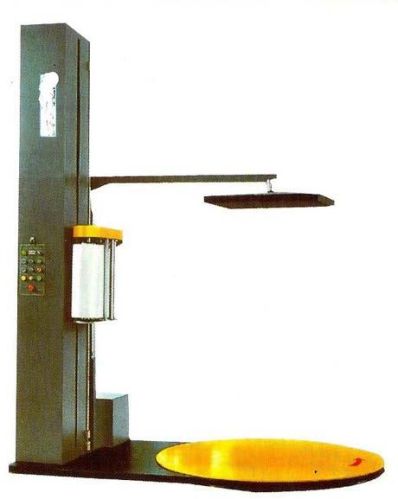

Contact SupplierModel | Pallet stretch wrapping machine |
Spsw 2100 | |
Max. Wrapping Size (LxWxH) (max) (mm) | (500-1200) x (500-1200) |
Wrapping Efficiency (loads/hour) | 20-40 |
Turntable speed (rpm/min) | 03/12/14 |
Turntable diameter (mm) | ɸ : 1650 / H : 85 |
Turntable Loading (max) (kg) | 2000 |
Elecctrical requirement (v/hz) | 220/50 |
Power (kw) | Turntable : 0.75 film |
Carriage : 0.4; Steel tower : 0.37 | |
Film carriage | Pre-stretch type |
Control system | PLC |
Top plate device | Pneumatic direct transmit |
Orbit top plate | |
Weight (kg) | 800 kg |
Machine dimension (mm) | L Type : 2745 x 1650 x 2700 / H type : 2745x1650x3300 |
