Stress Control Mastic Tape

Listing ID #2676811

Get Latest Price

Colour AvailableYellow & Grey
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

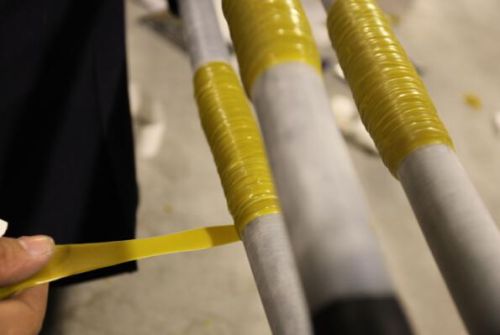

PCP Stress Control Mastic Tape used for void fillings in terminations and joints mastic provides excellent stress control functions and is used in medium voltage terminations and joints for providing stress relief of the electric field. It is water resistant and has high adhesion property to connectors and cable components. It is self fusing and can be used for filling vpids for irregular shapes. Stress Control Mastic Tape is applied at the screen cut i.e. At the end of the semi-conducting screen and start of the XLPE insulation of the cable.Stress Grading Mastic Tape is given to control the high stress. It helps to equilibrates and distribution the electrical field developed during transmission and reduce the electrical stress to a great extent. It has high adhesion and resistant to wide range of temperatures i.e. Upto 120 and has elastic in nature.
Details :

High Adhesion
Wide Range of Service
Temperature
Environment Resistant
Easy Installation

Applications :

Used to control electrical stresses at the end of the outer screen in joints and terminations for polymeric cables .
Used to seal and control the stresses at the crutch of 3 core Paper insulated cables in joints.
Can also be use d to control stresses at other locations in joints and Terminations and to fill l void and gaps.

Technical Details

Properties	Test Method	Typical Data
Tensile Strength M Pa	ASTM D 2671	≥0.2MPa
Elongation at break	ASTM D 2671	≥1000%
Dielectric Strength (KV/mm)	IEC 243	≥12kV/mm
Dielectric Constant	IEC 250	13-15
Volume Resistance	IEC 93	≥1.8X1011Ω.cm
50Hz loss factor	-	0.035
105^oC heat shock	-	Pass

Specifications

Description	Width -W	Thickness -T	Standard Length - L
Pcp – Scmt	25/30	2	300/500
