Features :

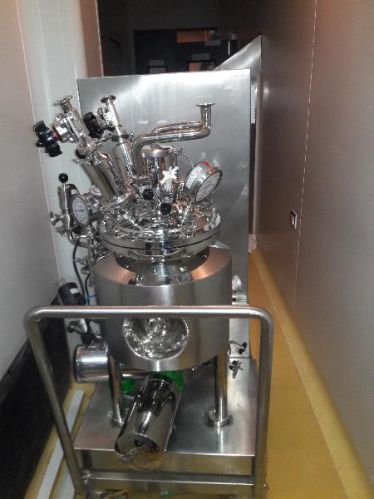

• Vessel is a Vertical cylindrical with flanged end main shell & flanged end top dish along with tori spherical bottom dish welded to main shell.
• Vessel has 45 mm puff insulation cladding to avoid Heating-cooling transfer losses.
• Manhole / hand holes are provided depending on vessel size for viewing and maintenance of vessel.
• Sight glass with lamp is view the process inside the vessel in closed conditions.
• Vessel is provided with castor wheels or mobile skid to enable easy movement.
• Vessel is jacketed with steam / cooling water inlet / outlet facility to maintain the product temperature inside the vessel.
• For weight indication of product Load cell is provided.
• Various sensors are provided for process control like temperature sensors, level sensor, PH sensor, Conductivity sensor.
• Vessel is connected to CIP & SIP system for cleaning & sterilization purpose. To fulfill CIP & SIP purpose we provide a spray ball along with Manual Operated diaphragm valve.
• Control panel & vessel are provided on same skid.
• Design code is confirmed to ASME SEC VIII, DIV-I, Non IBR Pressure Vessels & BPE STD 2008.
• Vessel capacity Range from 3 ltr to 10000ltr
• Vessel Material of contact parts is SS316L and other parts are of SS304.
• Vessel are internally electro polished.
• All accessories like Load cell, Vent filter, spray ball, light glass, hand hole, ZDL valve, diaphragm valves, magnetic stirrer etc. are purchased from reputed makes.
