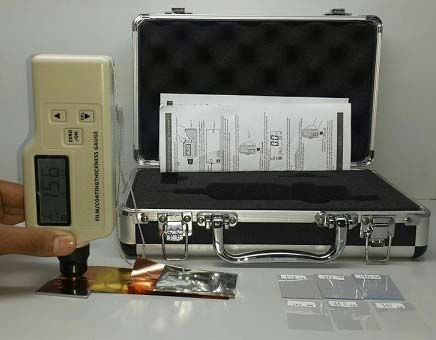

Contact SupplierDigital Film Coating Thickness Gauge determines the thickness of jari, film, coating, fabric, paper samples accurately. Digital Film Coating Thickness Gauge is reliable, of excellent quality and accurately and conveniently performs testing pertaining to thickness measurement.
In Digital Film Coating Thickness Gauge, the sample whose thickness is to be determined is kept on a flat standard plat given with instrument and a circular pressure foot is pressed on to it.
Features of Digital Film Coating Thickness Gauge:
Determines the thickness of yarns, fabrics, paper, film, jari, coating, etc.
Range of measurement: 0.1 Micron - 3 mm.
Thickness is accurately measured in Micron through digital gauge.
Supplied with calibration & inspection certificates.
Accurately and conveniently performs thickness measurement.
Consists of a digital meter with a flat pressure foot and a calibration kit.
Specifications of Digital Film Coating Thickness Gauge:
Range of measurement : 0.1 Micron - 3 mm
Least count of tester : 0.1 Micron
Overall Dimensions of the Instrument : 115(W) x 185(D) x 180(H) mm
Net Weight of the Instrument : 1.9 Kg. (4.18 lbs)
Technical specifications & appearance of machines are subject to change without any notice.
Digital Fabric Thickness Gauge confirms with the international standards
How Digital Film Coating Thickness Gauge?
The sample that is to be measured is kept on an flat metal base given with instrument.
The press foot is gently lowered on to the specimen.
The reading is taken to get the thickness of the specimen.
The flat circular indenter of the meter exerts the specified pressure on the sample.
The above procedure is repeated to obtain the values of thickness at least at 3 different locations.
The mean value of all the readings of thickness determined to the nearest 0.1 m is calculated and the result is the average thickness of the sample under test.
Digital Film Coating Thickness Gauge confirms with internationa
