nexus forge industries
salient features:
1. the union consists of nut liner & male port / nipple & gasket
2. made from high precision & accuracy machined in cnc from forging steel
3. highly robust & thermal strength enabling easy dismantling & sterilization with no reduction in product life
techinical info
mode occording to aisi /sms/df standard
connections - expandable & weldable
gasket - ndrie/silicon/epdm
threading - round type
material / moc)- aisi 304/316/304l/316l
maximum tested pressure: 10 bar
minimum working presure : (-1 bar)
maximum temp: 95°c
minumum temp: (-20°c)

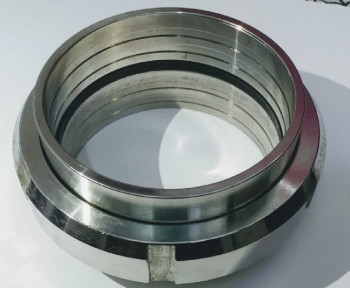

sms union / dairy union
type sms
rate pressure 10 bar
material stainless steel
usage/application dairy
size 1 inch to 4 inch
thread size round thread
country of origin made in india
application
sms union are used in process piping systems, as couplings for pipes fittings. main applications are in dairy chemicals & food, ice cream pharmaceutical, wineries, beverage, industry
additional information:
delivery time: ready stock
available sizes
25.38,51.63.76.101 (mm)
