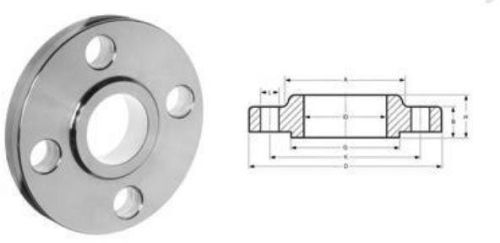

Stainless Steel Slip On Flanges

Listing ID #6272998

Get Latest Price

Slip on Flange BSBS4504 , BS4504, BS1560, BS10
Slip on Flange StandardsANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Slip on Flange Size1/8″ NB TO 48″NB.
Stainless Steel GradesASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Supply Type Manufacturer, Exporter, Retailer, Trader
Preferred Buyer Location All over the world

View More Details

Product Details

Slip on Flange BS BS4504 , BS4504, BS1560, BS10
Slip on Flange DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
Slip on Flange Standards ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Slip on Flange Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Slip on Flange Size 1/8″ NB TO 48″NB.
Slip on Flange ANSI ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
Stainless Steel Grades ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Slip on Flange Dimensions ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Slip on Flange Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

ASTM A182 GRADE	C	Mn	P	S	Si	Ni	Cr	Mo	Nb	Ti	Others
ASTM A182 Stainless Steel Slip On Flanges Materials Composition, %
F304(1)	0.08	2.0	0.045	0.030	1.0	8.0-11.0	18.0-20.0
F304H	0.04-0.10	2.0	0.045	0.030	1.0	8.0-11.0	18.0-20.0
F304L(1)	0.030	2.0	0.045	0.030	1.0	8.0-13.0	18.0-20.0
F304N(2)	0.08	2.0	0.045	0.030	1.0	8.0-10.5	18.0-20.0
F304LN(2)	0.030	2.0	0.045	0.030	1.0	8.0-10.5	18.0-20.0
F309H	0.04-0.10	2.0	0.045	0.030	1.0	12.0-15.0	22.0-24.0
F310	0.25	2.0	0.045	0.030	1.0	19.0-22.0	24.0-26.0
F310H	0.04-0.10	2.0	0.045	0.030	1.0	19.0-22.0	24.0-26.0
F310MoLN	0.030	2.0	0.030	0.015	0.40	21.0-23.0	24.0-26.0	2.0-3.0			N 0.10-0.16
F316	0.08	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0
F316H	0.04-0.10	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0
F316L(1)	0.030	2.0	0.045	0.030	1.0	10.0-15.0	16.0-18.0	2.0-3.0
F316N(2)	0.08	2.0	0.045	0.030	1.0	11.0-14.0	16.0-18.0	2.0-3.0
F316LN(2)	0.030	2.0	0.045	0.030	1.0	11.0-14.0	16.0-18.0	2.0-3.0
F316Ti	0.08	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0		(3)	N 0.10 max
F317	0.08	2.0	0.045	0.030	1.0	11.0-15.0	18.0-20.0	3.0-4.0
F317L	0.030	2.0	0.045	0.030	1.0	11.0-15.0	18.0-20.0	3.0-4.0
F321	0.08	2.0	0.045	0.030	1.0	9.0-12.0	17.0-19.0			(4)
F321H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-12.0	17.0-19.0			(5)
F347	0.08	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(6)
F347H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(7)
F348	0.08	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(6)		Co 0.20 Ta 0.10
F348H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(7)		Co 0.20 Ta 0.10
