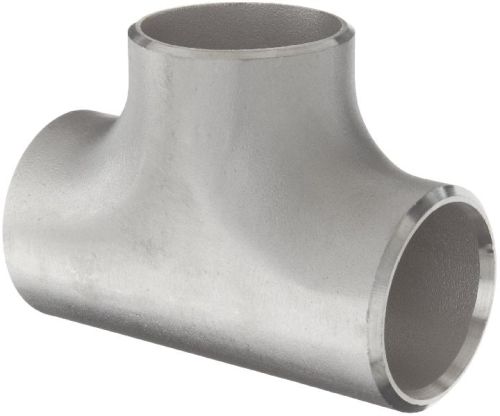

Stainless Steel Pipe Tee

Sold By : Maha Bhairav Stainless

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Since our strict packaging guidelines, we make sure that the products are suitably packed assuring zero damage during transportation. Furthermore, our packaging professionals thoroughly check the whole batch before making the final transmit. Engaged in the trade of supplying the excellent product range, we are efficiently operating from Mumbai(India).

Specifications

Type	Butt weld (BW)
Butt weld (BW) Standard	ASME / ANSI – B 16.9ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings’ ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Butt Weld Equal Tee Dimension	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
Butt Weld Equal Tee Size	1/2” TO 36”, (Seamless Butt weld up to 24”), (Welded Butt weld 8” TO 36”)
Butt Weld Equal Tee Thickness	SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness.
Butt weld fittings Range	Elbow, Tee, Reducer, Stubend, Cross, Pipe Cap, Pipe Bend
Stainless Steel Butt Weld Equal Tee	ASTM A403 WP316/316LASTM A403 WP304/304L ASTM A182 F316L, 304L DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex Steel Butt Weld Equal Tee	ASTM A815, ASME SA815 UNS No S31803, S32205ASTM A815, ASME SA815 UNS No S32750, S32950
Carbon Steel Butt Weld Equal Tee	ASTM A234 Gr. WPBASTM A420 Gr. WPL6 ASTM A105 ASTM A350 Gr. LF2 ASTM A234 Gr WPB ST37.2, ST35 ASTM / ASME A/SA 234 / 420 WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Low Temperature Butt Weld Equal Tee	ASTM A420 WPL3, A420 WPL6
Alloy Steel Butt Weld Equal Tee	ASTM A 234 WP – P5, P9, P11, P12, P21, P22 & P91ASTM A234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Retailer Of Stainless Steel Hex Head Screw, Button Head Cap Screws, 12 POINT SCREWS, Fasteners, PIPE OUTLET FITTINGS, Pipe Nipples, Stub Ends, Pipe Bends, Pipe End Cap, Pipe Reducer, Pipe Cross, Pipe Tee, Pipe Elbow, Elbowlet Olets, DTI Washers.
