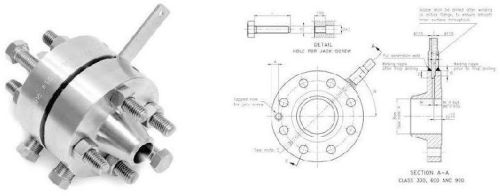

Stainless Steel Orifice Flanges

Listing ID #6273074

Get Latest Price

Orifice Flange Flange Flange Face TypeFlate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Orifice Flange Flange Class150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Orifice Flange Flange Size1/8″ NB TO 48″NB.
Stainless Steel GradesASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Supply Type Manufacturer, Exporter, Retailer, Trader
Preferred Buyer Location All over the world

View More Details

Product Details

Orifice Flange Flange ANSI ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
Orifice Flange Flange Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Orifice Flange Flange Dimensions ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Orifice Flange Flange BS BS4504, BS4504, BS1560, BS10
Orifice Flange Flange Size 1/8″ NB TO 48″NB.
Orifice Flange Flange Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Orifice Flange Flange DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
Orifice Flange Flange Standards ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Stainless Steel Grades ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L

ASTM A182 GRADE	C	Mn	P	S	Si	Ni	Cr	Mo	Nb	Ti	Others
ASTM A182 Stainless Steel Orifice Flanges Materials Composition, %
F304(1)	0.08	2.0	0.045	0.030	1.0	8.0-11.0	18.0-20.0
F304H	0.04-0.10	2.0	0.045	0.030	1.0	8.0-11.0	18.0-20.0
F304L(1)	0.030	2.0	0.045	0.030	1.0	8.0-13.0	18.0-20.0
F304N(2)	0.08	2.0	0.045	0.030	1.0	8.0-10.5	18.0-20.0
F304LN(2)	0.030	2.0	0.045	0.030	1.0	8.0-10.5	18.0-20.0
F309H	0.04-0.10	2.0	0.045	0.030	1.0	12.0-15.0	22.0-24.0
F310	0.25	2.0	0.045	0.030	1.0	19.0-22.0	24.0-26.0
F310H	0.04-0.10	2.0	0.045	0.030	1.0	19.0-22.0	24.0-26.0
F310MoLN	0.030	2.0	0.030	0.015	0.40	21.0-23.0	24.0-26.0	2.0-3.0			N 0.10-0.16
F316	0.08	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0
F316H	0.04-0.10	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0
F316L(1)	0.030	2.0	0.045	0.030	1.0	10.0-15.0	16.0-18.0	2.0-3.0
F316N(2)	0.08	2.0	0.045	0.030	1.0	11.0-14.0	16.0-18.0	2.0-3.0
F316LN(2)	0.030	2.0	0.045	0.030	1.0	11.0-14.0	16.0-18.0	2.0-3.0
F316Ti	0.08	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0		(3)	N 0.10 max
F317	0.08	2.0	0.045	0.030	1.0	11.0-15.0	18.0-20.0	3.0-4.0
F317L	0.030	2.0	0.045	0.030	1.0	11.0-15.0	18.0-20.0	3.0-4.0
F321	0.08	2.0	0.045	0.030	1.0	9.0-12.0	17.0-19.0			(4)
F321H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-12.0	17.0-19.0			(5)
F347	0.08	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(6)
F347H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(7)
F348	0.08	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(6)		Co 0.20 Ta 0.10
F348H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(7)		Co 0.20 Ta 0.10
