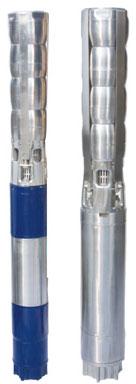

STAINLESS STEEL BOREWELL SUBMERSIBLE PUMP SET

Listing ID #3946339

Get Latest Price

Stainless SteelCoupling
Material of ConstructionNRV Hauslng
Head Ran e in meters 10-100
Speed2880 rpm
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Stainless Steel
Standard as per NEMA
Stainless Steel Coupling
Series OSP 70 & 90
Method of stariing DOL/Star Delta in 3 Phase
Discharge Range lpm 1100-1400
Material of Construction NRV Hauslng
Max outer diameter 157 mm
Degree of Protection IP 68
Specifications V7
Stainless Steel Pump Shaft
Duty S1
Outlet size 100 mm
Version 350-440V - A.C 50 Hz —3 Phase
Power Range 3.0 -5O HP in 3 phase
NBR + 55-304 Impeller
Stainless Steel Diffuser
Stainless Steel Suction inter Connector
Stainless Steel Valve Sheet
Speed 2880 rpm
Head Ran e in meters 10-100

Neer submersible pumps & motors are well known for its quality, reliability & excellent for all type of service purpose. Neer submersible pumps & motors are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection procedure under TQM concepts. Neer team are well known for their excellent services after sales.
The company has also obtained BIS certificate for ISI mark and through continuous process improvements & streamlining the quality system at par with the international standards has now acquired ISO:9001:2000 certifications.
Application of Bore well submersible pumps are Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms, Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building & Industrial water supply systems & Hotels.
Neer has successfully developed its energy efficient and cost efficient pump manufacturing of fully fabricated S.S.-304 with a quality level as per international standard. The company has offering quality product at a lowest price .the company has exporting pump sets to developed countries and the same quality is supply in domestic market.
Neer Submesible Pumpsets of modular design suitable for under-water operation for universal fit, all mounting dimensions of pumps and motors are in accordance with NEMA standards. Neer submersible pumpset are of completely S.S.-304 construction with fabricated technology, light weight easy for handling, life longevity, pump shaft using Duplex steel for high wear resistance.
We offers a complete range of pumps and motors with as a standard are made completely as stainless steel - 304. This provides for good wear resistance and a reduced risk of corrosion when pumping ordinary cold water with a minor content of chloride. These pumps have low weight facilitating the handling of pumps and resulting in low equipment costs and
Neer WATER FILLED AND WATER COOLED SUBMERSIBLE MOTORS

Application in :
• Water extraction from boreholes for large irrigation
• AC and eaiar enargy compatible
• Agriculture & institutes water supply
• Civll & Industrial water supply
• Rural water supply

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Neer Pumps Industries is a manufacturer of Stainless Steel Fabricated Energy Efficient Submersible Pumpsets best suitable for Domestic, Agriculture and Industrial application. An ISO 9001 certified company having best of modern machineries, accurate designs and dedicated workforce which enables to bring most efficiency in our products. With continuous rigid inspection and computerized tests bay, meets the highest standards in performance. Thus manufacturing almost trouble free products. Our R&D team strives for higher output and efficiency at minimum power consumption which can meet the changing demands of the market.
