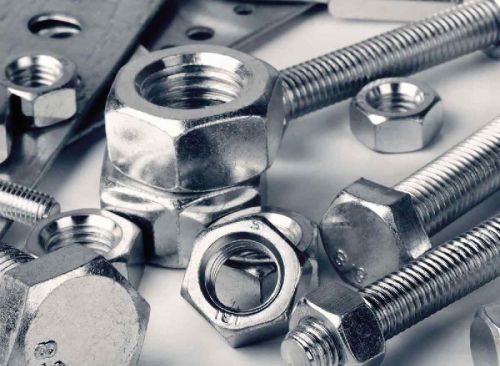

Stainless Steel 316 Fasteners, Size : M02 to M33

Listing ID #4321445

Get Latest Price

SizeM02 to M33
Length3 mm to 200 mm
DimensionsASME B18.2.1, ASME B18.3, DIN 931, DIN 933, DIN 934, DIN 7991, DIN 976
StandardDIN, GB, BS, ISO, IS, JIS, ASTM, ASME, EN
Supply Type Manufacturer, Exporter, Supplier, Distributor, Trader
Preferred Buyer Location All over the world

View More Details

Product Details

Size M02 to M33
Length 3 mm to 200 mm
Standard DIN, GB, BS, ISO, IS, JIS, ASTM, ASME, EN
Threads ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Advantages High Strength, Good Formality, Resistant to High Temperature, Resistant High Mechanical Stresses
Dimensions ASME B18.2.1, ASME B18.3, DIN 931, DIN 933, DIN 934, DIN 7991, DIN 976

Standard	SS 316	SS 316L	SS 316H	SS 316TI
UNS	S31600	S31603	S31609	S31635
WERKSTOFF NR.	1.4401 / 1.4436	1.4404 / 1.4435	-	1.4571
AFNOR	Z7CND17‐11‐02	Z3CND17‐11‐02 / Z3CND18‐14‐03	-	Z6CNDT17‐12
JIS	SUS 316	SUS 316L	-	SUS 316Ti
GOST	-	03Ch17N14M3 / 03Ch17N14M2	-	08Ch17N13M2T
BS	316S31 / 316S33	316S11 / 316S13	-	320S31
EN	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	-	X6CrNiMoTi17-12-2

APERTURE	CROSS ROD DIA	PITCH	NO.OF LUGS WITHIN 1 PITCH
0.05 mm (50 Micron)	5 dia	70/66 mm	2
0.75 mm (75 Micron)	5 dia	70/66 mm	2
0.10 mm (100 Micron)	5 dia	70/66 mm	2

APERTURE	CROSS ROD DIA	PITCH
0.05 mm (50 Micron)	3.2 dia	25.4 mm
0.75 mm (75 Micron)	3.2 dia	25.4 mm
0.10 mm (100 Micron)	3.2 dia	25.4 mm

APERTURE	CROSS ROD DIA	PITCH
0.05 mm (50 Micron)	4.80 dia	38.1 mm
0.75 mm (75 Micron)	4.80 dia	38.1 mm
0.10 mm (100 Micron)	4.80 dia	38.1 mm

SECTION NUMBER	PROFILE WIDTH mm	PROFILE DEPTH mm
20	1.70	2.74
23	1.93	3.07
28	2.33	3.83
32	2.66	4.32
33	2.77	4.50
35	2.90	4.70
39	3.28	5.31
42	3.50	5.72
44	3.66	5.90
41	3.91	4.87
49	4.08	6.63
51	4.32	6.98
54	4.52	7.34
