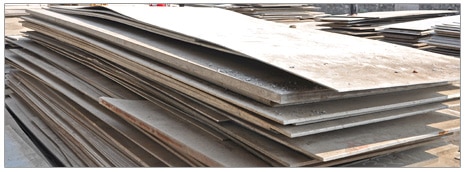

Stainless Steel 316 / 316L Sheets & Plates

Listing ID #6658858

Get Latest Price

MOQ 100 Kilogram
MaterialStainless Steel
Thickness0.3 Mm To 120 Mm
ApplicationConstruction Use, Fabrication Use
FeatureFine Finished, High Strength
Size1000 x 2000 1220 x 2440 (4' x 8') 1250 x 2500 1500 x 3000 To 6000 2000 x 4000 To 6000
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Specifications

Standards	Designation
ASTM	A 240
ASME	SA 240

STANDARD	UNS	WERKSTOFF NR.	EN	AFNOR	BS	GOST	JIS
SS 316	S31600	1.4401 / 1.4436	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	Z7CND17‐11‐02	316S31 / 316S33	-	SUS 316
SS 316L	S31603	1.4404 / 1.4435	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	Z3CND17‐11‐02 / Z3CND18‐14‐03	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	SU

Composition Ranges For 316 Grade Of Stainless Steels Sheets & Plates.

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316	Min	-	-	-	0	-	16	2	10	-
316	Max	0.08	2	0.75	0.05	0.03	18	3	14	0.1
316L	Min	-	-	-	-	-	16	2	10	-
316L	Max	0.03	2	0.75	0.05	0.03	18	3	14	0.1
316H	Min	0.04	0.04	0	-	-	16	2	10	-
316H	Max	0.1	0.1	0.75	0.05	0.03	18	3	14	-

Mechanical Properties Of 316 Grade Stainless Steels Sheets & Plates.

Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Hardness
Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
316	515	205	40	95	217
316L	485	170	40	95	217
316H	515	205	40	95	217

Typical Physical Properties For 316 Grade Stainless Steels.

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	At 100°C	At 500°C
316/L/H	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

Grade Specifications For 316 Grade Stainless Steels.

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
Grade	UNS No	BS	En	No	Name	Swedish SS	Japanese JIS
316	S31600	316S31	58H, 58J	1.44	X5CrNiMo17-12-2	2347	SUS 316
316L	S31603	316S11	-	1.44	X2CrNiMo17-12-2	2348	SUS 316L
316H	S31609	316S51	-	-	-	-	-

Note: These comparisons are approximate only. The list is intended as a comparison of functionally similar materials notas a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.

Possible Alternative Grades To 316 Stainless Steel

Grade	Why it might be chosen instead of 316?
316Ti	Better resistance to temperatures of around 600-900°C is needed.
316N	Higher strength than standard 316.
317L	Higher resistance to chlorides than 316L, but with similar resistance to stress corrosion cracking.
904L	Much higher resistance to chlorides at elevated temperatures, with good formability
2205	Much higher resistance to chlorides at elevated temperatures, and higher strength than 316
