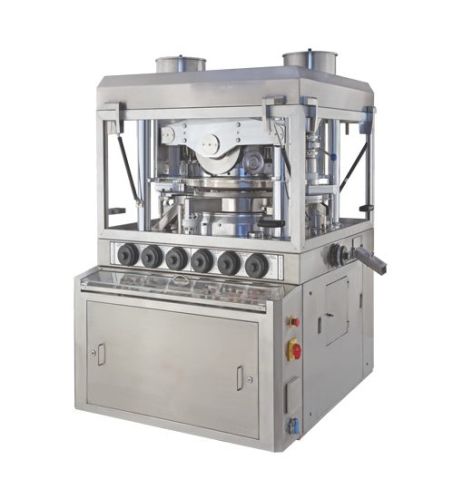

Square GMP model Double sided Rotary tablet press

Listing ID #4288549

Get Latest Price

Supply Type Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

As an eminent enterprise, we are offering a wide range of highly efficient Double Side Rotary Tablet Machine. This offered machine is designed by our skilled professionals in accordance with....

View More Details

Send Enquiry

Product Details

As an eminent enterprise, we are offering a wide range of highly efficient Double Side Rotary Tablet Machine. This offered machine is designed by our skilled professionals in accordance with industry quality standards. Our provided machine is manufactured using the advanced technology and premium quality components. Moreover, this machine is examined on various stringent parameters to ensure its durability and quality.

Features :-

Efficient performance
Long service life
Corrosion resistance
Designed as per GMP standards
Suitable for Medium to large batch production
Available in different Models 27 Stn. – D, 27 Stn. – B, 35 Stn. – B, 45 Stn. – BB Tablet compression machine
Fitted with AC Frequency Drive for Main Motor, Lower Punch Seal, and 3 Pc.Turret Die Pot.
Safe and simple to operate and easy to maintain

Type	DRTPM-27	DRTPM–27	DRTPM–35	DRTPM–45
No. of stations	27	27	35	45
Type of tooling	D	B	B	BB
Max. Output/hour	129000	129000	168000	216000
Min. Output/hour	50000	54000	70000	90000
Max. Operating pressure	10 Tons	6.5 Tons	6.5 Tons	6.5 Tons
Max. tablet diameter	25 mm	15.87 mm	15.87 mm	11.1 mm
Max. depth of fill	20 mm	17.5 mm	17.5 mm	17.5 mm
Upper punch penetration	1.5 to 6.5 mm	1.5 to 6.5 mm	1.5 to 6.5 mm	1.5 to 6.5 mm
Main electric motor	3.75 kw/5 hp	2.75 kW/3 hp	2.75 kW/3 hp	2.75 kW/3 hp
