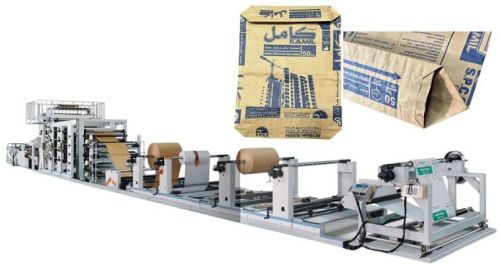

2-5 layer paper cement bag making machine

Listing ID #6781635

50kg paper cement bag making machine,
 2-4 papers+ PE,multi layer kraft paper cement bag making machine
with 4 color printers

Tube bag body:

Stepped cut, tube length（mm)  500-1100

Straight cut, tube length（mm)  500-1100

A-shaped edge, width（mm)  350-620

M-shaped edge, width（mm)  ≤80

Cut  Straight+stepped

Layers  2~4 papers+1PE

Top speed tubes/min (different bags, different speed)  145（tube length:750-800）

Normal speed tubes/min (different bags, different speed） 120 - 140

Max Paper Reel Diameter（mm)  ∅1300

Size of the machine (m)  28.72*2.38*2.875
Power     35KW

Finish bag Technical Parameters:

Bag Length（mm) 365～850

Bag Width（mm) 350～600

Bag Bottom Width（mm) 100～200

Flake Valve Length（mm) 120～350

External Reinforcement Length（mm) 260～480

Internal Reinforcement Length（mm) 130～400

Normal Speed bags/min ≦80（Single Head）

Vacuum pump suction rate 300m3/h

Vacuum Pump Vacuum Degree 0.5 mbar

Size (m) 28.72*5.2*2.3

Total Power 30 Kw
