Contact Supplier1) Up and down magnetic switch control system to prevent the mistake of sealing and protect the operator meanwhile
 |
2) "Schneider" programmable logic controller (PLC) with stable performance |
3) "Schneider" AC contractor, intelligent temperature control |
4) Large power conveyor motor, steeples speed regulating, ensure smooth feeding |
5) Up and down large power fan system to ensure the excellent effect of shrinking in one time |
6) Super cooling system to ensure the perfect shape of products quickly after shrinking |
  |
Parameter: |
Specifications: |

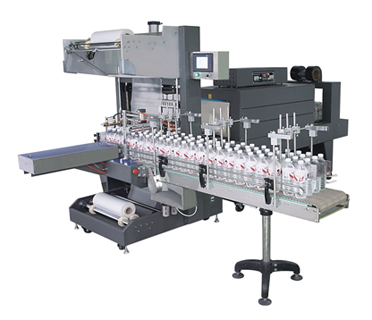

1) Model: SPS-20- H (sleeve wrapper) |
2) Voltage: 220V , 50 - 60Hz |
3) Power: 3kW |
4) Packing speed: 0 - 10pcs/minute |
5) Air pressure of working: 4 - 6kg/cm |
6) Width/thickness of the film: max. 590mm/0.03 - 0.25mm |
7) Max. packing dimensions: 500(L) x 300(W) x 400(H)mm |
8) Min. packing dimensions: 250(L) x 50(W) x 100(H)mm |
9) Machine size: 1,060 x 1,600 x 1,930mm |
10) Conveyer driver size: 1,700(L) x 410(W) x 400(H)mm |
11) Machine weight: 370kg |
 |
