Spring Loaded Disc Check Valve

Listing ID #1718665

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

Nivz Spring Loaded Disc Check Valves - Non Return Valve feature a wafer type, compact and rugged design Cast Carbon Steel (ASTM A 216 GR. WCB) or Stainless Steel (ASTM A 351 GR.....

View More Details

Send Enquiry

Product Details

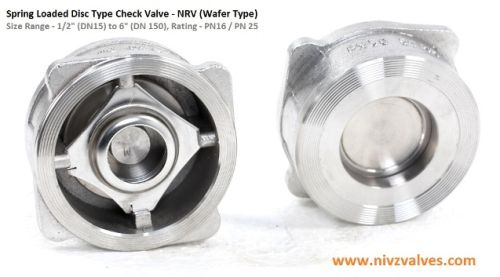

Nivz Spring Loaded Disc Check Valves - Non Return Valve feature a wafer type, compact and rugged design Cast Carbon Steel (ASTM A 216 GR. WCB) or Stainless Steel (ASTM A 351 GR. CF8/CF8M/CF3/CF3M/SS304/SS316/SS304L/SS316L) construction and are suitable for any process liquid, air, gas, steam etc.

The Single Disc Check Valve (Wafer Type Single Disc Check Valve) consists of four main components: the body, a disc, a star guide and a spring. The Disc check valves are opened by the pressure of fluid and closed through compression spring as soon as flow stops thus preventing reverse flow.

The design of Wafer Design, Sandwich Type, Flangeless Single Disc Spring Loaded Check Valves allows them to be installed between any flanges of different standard and in any position; including vertical pipelines where the fluid flows downwards.

Wafer Type Spring Loaded Disc Check Valves is also available with Zero Leakage by the use of Soft Seat. Nivz Valves & Automation has cover Disk Check Valve up to 6” (DN150) Size and Pressure Rating up to PN40.

Nivz Valves a leading Spring Loaded Disc Check Valve Manufacturer, Disc Check Valve Exporter, Stockist, Importer, Supplier. Flangeless - Wafer - Sandwich Type Disco Check Valves, Non Return Valve -

Salient Features of Disc Check Valve

Investment Casting Body Construction
Compact & Rugged Design
Stronger, Lighter and Smaller than Conventional Swing Check Valve,
Hence Less Expensive to Install and Maintain
Single Disc Type
Spring Loaded Disc to Prevent Reverse Flow in Pipe Lines
Easy To Installation between Two Pipe Flanges
Metal To Metal or Soft Seat option
Maintenance Free Design
Zero Leakage (In Soft Seat)
Full Port Opening
Less Pressure Drop
Wafer, Flangeless, Sandwich Type
Shorter Length, Required minimum space
Offer any 3rd Party or Client Inspection

Company Details

It gives us immense pleasure to introduce our company as one of the dynamic growth oriented and quality conscious engineering firm. Our team engineers have an experience of more than 15 year in manufacturing and exporting of Industry of Valves, Valve Automation, Sight Glass – Flow Indicators and Strainer - Filters.
The organization is managed by technocrats having wide experience in Projects, Maintenance, Production and Marketing of industrial valves. Nivz Valves manufacturing all types of valves as per National & International standard and almost all related standard available with us in our engineering library. We match all customer need API/ASME/MSS/AWWA/BS/IS/DIN/JIS standard valves.
Nivz also offer valves with 3rd Party Inspection or customer inspection prior to dispatch the materials. We have a work experience with 3rd Party like SGS, BV, DNV, TATA, IRS, PDIL, QUEST, KPMG, Intertek, Techcellance and many more.
Our manufacturing range covers Ball, Globe, Gate, Check - Non Return, Butterfly, Forged Steel, PTFE/FEP/PFA Lined, Flush Bottom, Jacketed, Needle Valve, Y/T/Conical/Inlinet/Offline/Simplex/Duplex Basket Type Strainer Filters, Sight Glass - Flow Indicator, Diaphragm, 3/4/5 Way, Multiport, Fire Safe Ball Valve, Pneumatic Control Valve, Pneumatic/Electrical Actuator Operated Valves. The valves manufacturing range in size from 10 mm to 300 mm in different types of valves & up to 600 mm in case of Wafer Check valve, 1200mm up to Butterfly Valve, material of construction can be Cast Iron, Cast Steel, Stainless Steel, Alloy Steel and to suit specific customer requirement.
These valves are generally conforming to API, BS, ANSI, ASME and DIN international technical standards for Design, Manufacture and Testing. Our enterprise have complete set-up for Hydraulic, Pneumatic & Function Test of Valve.
