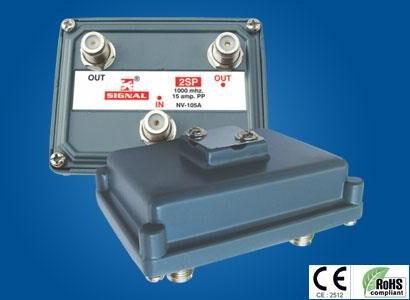

Splitter Outdoor Tap

Listing ID #1629593

Get Latest Price

RESERVE PATH FREQUENCY5 TO 40 mhz
RETURN LOSS15 db. (min)
IN/OUT IMPENDENCE75 ohms
V.S.W.R.(2 db below)
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

RESERVE PATH FREQUENCY 5 TO 40 mhz
V.S.W.R. (2 db below)
FEATURES Items are checked by fully automatic Synthesized PC Based Vector network Analyzer (1300 Mhz.),Final Production Graph Available on Request,High Quality "F" Type Connectors Standard,Taps & Splitter In High Port To Port Isolation & Excellent Return Loss,Made
POWER PASSING 15 AMP 60/90 V AC 50/60hz.
FLATNESS +/- 1 db
FREQ. RANGE 5 to 1000 mhz
RETURN LOSS 15 db. (min)
IN/OUT IMPENDENCE 75 ohms

MORE SPECIFICAION

Dir Coupler	Insertion loss (db max)				Tap loss (db max)				Isolation Tap to Out				Isolation Tap to Tap
	5-250 mhz.	250-550 mhz.	550-850 mhz.	850-1000 mhz.	5-250 mhz.	250-550 mhz.	550-860 mhz.	850-1000 mhz.	5-250 mhz.	250-550 mhz.	550-860 mhz.	850-1000 mhz.	5-250 mhz.	250-550 mhz.	550-860 mhz.	850-1000 mhz.
1 way	2	2	2	2 to 2.5	10	10	10 to 11	10 to 11	32	30	30	30	-	-	-	-
2 way	3	3	3 to 3.5	3.5 to 4	10	10	10 to 11	10 to 11	30	30	30	30	20	20	20	20
3 way	3.5	3.5	3.5 to 4	3.5 to 4	10	10	10 to 11	10 to 11	32	32	32	32	22	22	20	20
4 way	3.5	3.5	3.5 to 4	3.5 to 4	10	10	10 to 11	10 to 11	32	32	32	32	22	22	20	20

Splitter	Distribution Loss (db max)				Isolation Out to Out
Splitter	5-250 mhz.	250-550 mhz.	550-860 mhz.	850-1000 mhz.	5-250 mhz.	250-550 mhz.	550-860 mhz.	850-1000 mhz.
2 way	4	3.5	3.5 to 4	3.5 to 4	25 to 30	22 to 25	20 to 22	20 to 22
3 way	6	5 to 6	6	6 to 7	25 to 30	25 to 28	25 to 22	20 to 22
4 way	8	7 to 7.5	7 to 7.5	8 to 8.5	20 to 25	20 to 25	20 to 22	20 to 22

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

SHIVAM ELECTRONICS is acclaimed quality conscious manufactures and supplier of Cable Tv Accessories. Our products include splitters, couplers, filters, traps etc. Our unit was established in 1992.
Our unit is a full-fledged family of experienced owners, engineers, skilled workers and hi-tech machines and instruments.
The company has played a vital role in the Cable Tv industry. We are driven by technology and the determination to excel in all activities our mission is directed towards providing the customer superior value and ensuring the success of employees vendors and business partners. Working towards our mission, we follow the total quality and continuous improvements in product features and processes. We are committed to providing quality products at competitive prices, coupled with timely delivery.
We are confident that the most challenging designs can be manufactured by us to satisfy & delight the customer.
All products are manufactured from materials as International Standard Specifications. They are precisely machined on modern machine tools to give you years of reliable operations. Better insulating materials are used.
SHIVAM ELECTRONICS is a provider of innovative products and services who can satisfy your needs in Tv Accessories. Since for us is not just a business but also a passion.
