Spiral Classifier

Listing ID #3839909

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

EIMCO-K.C.P. Spiral Classifiers is art of separating the solid particles in a mixture of solids and liquid into fractions according to particle size or density by methods other than screening. In....

View More Details

Send Enquiry

Product Details

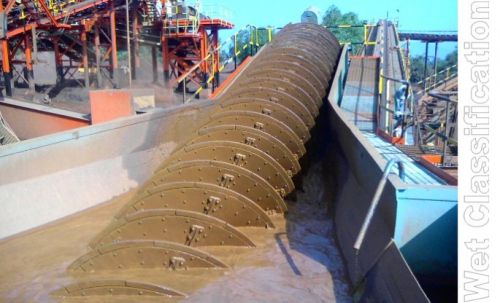

EIMCO-K.C.P. Spiral Classifiers is art of separating the solid particles in a mixture of solids and liquid into fractions according to particle size or density by methods other than screening. In general, the products resulting are (1) a partially drained fraction containing the coarse material (called the underflow) and (2) a fine fraction along with the remaining portion of the liquid medium (called the overflow).

The classifying operation is carried out in a pool of fluid pulp confined in a tank arranged to allow the coarse solids to settle out, whereupon they are removed by gravity, mechanical means, or induced pressure. Solids which do not settle report as overflow.

EIMCO-K.C.P. Spiral Classifiers are mechanically the devices are powerfully built, and functionally they are versatile and flexible.

Today’s worldwide acceptance of EIMCO-K.C.P. Classifiers for washing and dewatering pulps, and in closed-circuit grinding is the result of many years of experience in solving wet classification problems. Because users’ needs vary so greatly, the Classifier is available in a wide range of spiral diameters and pitches, tank shapes and lengths allowing exact compliance with each user’s classification requirements.

Spiral diameters (0.3 m to 2.25 m):

Important in establishing a correct balance between overflow and raking capacity. Bears directly on accuracy of separation and control of agitation.

Spiral pitches (single / double / triple):

Number of ribbons is a factor in controlling degree of agitation. Each ribbon of advanced pitch gives greater raking capacity than equivalent ribbon of spiral using lesser pitch. Triple ribbon spiral highly advantageous for slow-speed operations requiring close separations and high raking capacities.

Adjustable spiral speeds:

Recommended speed of operation given in peripheral MPM is an individual consideration for each ore, and is governed by size, shape and gravity of particle, angle of repose of raking load and desired mesh of separation. Peripheral speeds between 6 and 60 meters per minute are available.

Pool depth:

Choice of pool depth is directly related to effectiveness of pool area. Series 90 units are employed for coarse separations on down to 212 micron (65 mesh); Series 125 units are employed for separations between 300 and 106 micron (48 and 150 mesh); Series 150 units are employed for separations of 150 micron (100 mesh) and finer.

Lifting device:

Lifting device eliminates necessity of draining tank during shutdowns. Classifier may be quickly put in operation after shutdown with tank fully sanded. Hydraulic-type standard on all units 1.2 m in diameter and larger. Fast action hand wheel-operated screw- type lift standard on 1.05 m and smaller.

Main Features

Low Initial Cost.
Low Operating and Maintenance Cost.
Adjustable Flexible Lifting Device.
Simple Flexible Lifting Device.
Sectionalized Steel Flights.
Replaceable Wearing Shoe

Company Details

Introduction
Home / About EIMCO-K.C.P./Introduction
The EIMCO-K.C.P. Ltd is a Process Technology Company and leading manufacturer of Liquid – Solid Separation equipment for Industrial and Environmental Applications: Thickening, Clarification, Classification, Vacuum Filtration, Aeration Systems etc.
The EIMCO-K.C.P. Ltd was established in 1967 and has more than 25,000 installations worldwide. The EIMCO-K.C.P. Ltd is a wholly owned subsidiary of KCP SUGAR AND INDUSTRIES CORP LTD and is in possession of the EIMCO USA Technology.
The company’s products and technical services are extensively used in Mineral Processing, Chemical Processing, Food Processing, Refining, Pulp and Paper, Power Plant, FGD System, Municipal & Industrial Water and Wastewater Treatment.
Designs are tailored for each application by combining technical data with field, pilots and laboratory test work on the representative slurry sample. Mechanical reliability and ease of maintenance are incorporated into the final product by a design team specializing in product application.
MANAGEMENT
The EIMCO-K.C.P. management consists ofa strong business groupwith interest in capital machinery, sugar etc. for over six decades and have practical experience that matches EIMCO-K.C.P.’s needs and challenges. For over 4 ½ decades, EIMCO K.C.P.’s main focus has been on providing customers with high class products at a competitive price and in time. It is this dedication, coupled with`quality’ thathas helped earn global recognition as a reliable supplier for Liquid Solids Separation equipment.
Our Parent Company is KCP SUGAR AND INDUSTRIES CORPORATION LTD. KCP Sugar And Industries Corporation Ltd has its Registered Office at “Ramakrishna Buildings, 239 (Old No.183), Anna Salai, Chennai 600 006, India. The sugar units of The KCP Ltd, have been vested with KCP Sugar And Industries Corporation Ltd (A public limited company).
KCP Sugar And Industries Corporation Ltd ranks among India’s leading industrial groups in terms of gross earnings, assets, profits and growth. Its established holdings are varied and ever growing. As the country’s premium producer of sugar, KCP Sugar And Industries Corporation Ltd has two (2) major sugar plants one at Vuyyuru and another at Lakshmipuram in Andhra Pradesh, having a total capacity of crushing 12,000 MT of cane per day. It also has a latest technology for producing alcohol of 60 KLD, ethanol and 45 KLD of extra neutral alcohol.
MAN POWER
The Company has adequate personnel consisting of highly qualified Chemical and Mechanical Engineers. The Workshop is managed by a team of qualified personnel backed by skilled operators in various trades. The Engineers have also been given enough training for erection, commissioning and after-sales-service of our products .
