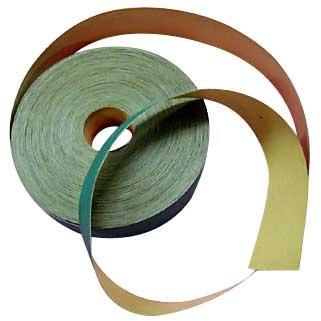

Contact SupplierWe offer premium quality Spindle Tapes, which are praised by our clients for
Features
Saves power up to 14%Uniform Spindle Speed & Excellent yarn QualityLow idle spindlageHigher productivityQuick acceleration to required speedNo accumulation of fluffMinimum downtime of machine
Properties
Light WeightHigh FlexibilityHigh StrengthHigh ElasticityHigh Coefficient of Friction on drum sideHigh abrasion ResistancePermanently AntistaticQuick Splicing and Joining of Spindle Tapes
Operational Working
Grind to given Length of Joint ( 20 mm for KHST-5 & 25 mm for KHST-80) with grinding machineClean & adjust the part of joint Knife to remove the loose particles of Rubber etcApply a thin coat of Adhesive to skived area of both ends and allow it to dry until slightly stickyPosition both ends correctly in pre-heated ( at 70ºc ) PressLeave Joint in press for a minimum of 3 minutes in case of SR-5 & 10 minutes in case of ST-80 under heat & PressureSwitch off power & allow the joint to cool under pressureTension must not be applied before Joint is completely cool
KHST-5 | KHST-51 | KHST-80 | |
---|---|---|---|
Thickness | 0.55mm | 0.60 | 0.80mm |
Breaking Strength | 75Kg/Cm | 8.5kg | 95kg/Cm. |
Elongation at Break | 20% | 18% | 18% |
Surface Cylinder Side | Elastomer coated Polyamide Fabric | 18% | Elastomer Coated Polyamide Fabric |
Wharves Side | Blend of Cotton & Polyamide Fabric | 18% | Blend of Cotton & Polyamide Fabric |
Coefficient of Friction Cylinder Side | 0.55 | 18% | 0.55 |
Wharves Side | 0.28 | 0.28 |
