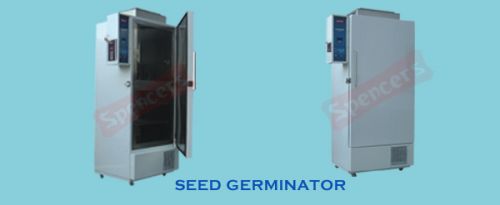

SPENCERS Seed Germinator provides unmatched consistent reproducible environmental conditions automatically for uninterrupted operation. The “user-friendly” controls in the seed germinator are easy to use and allows the control of almost any combination of temperature, light intensity, humidity parameters, water insertion and time options, with greater accuracy.
The Seed germinators are designed for accommodating high volume seed / test needs, as well as versatile, meeting many test requirements that may require a controlled single set point temperature, alternating temperature patterns, light, dark or alternating light periods. Accurate and reliable controls in the seed germinator are easy to use, making this an excellent choice for running special tests, as well as optional built-in memory to allow repetitive test procedures to be easily stored and retrieved.
SPENCERS Seed germinators are versatile testing chambers and would typically include meeting specific requirements of temperatures, humidity and light level intensity, such as: pre-chiller, seed germination, seed tests and research, plant test and research, plant growth, propagation, accelerated aging, photo stability tests, zoology, botany, tetrazolium, biological research and tissue culture tests.
CAPACITY SELECTIONS
Single Chamber
Double Chambers
** Varying capacity options on Demand.
CONTROL SELECTIONS
Heat/Cool
Relative Humidity
Light/Dark
Light Level
Test Cycles
Real Time Clock
Test Duration
Memory & Print
** Varying control options on Demand.
EXCLUSIVE STANDARDS
Customized rate of Heat/Cool.
Custom cyclic process controls.
Dependability, low maintenance & Value.
Temperature Uniformity & Temperature Control Stability.
Optimum Transition Rates of Temperature.
Sturdy design and long-lasting finish.
Custom built to customers design, specifications & loadings.
An extended choice of process and control options.
FEATURE SELECTIONS
Microprocessor/Microcontroller based Temperature Controls.
Microprocessor based Humidity controls.
Alarms with rechargeable battery backup.
|
TECHNICAL SPECIFICATION |
|
|
General Specifications of Seed Germinators |
|
|
Chamber Construction |
Single Chamber Seed germinators ; Double Chamber Seed germinators |
|
Capacity |
5 Cu. Ft. to 100 Cu. Ft. as per requirements. |
|
Temperature range |
0 °C to +70 °C ( As per requirements) |
|
Humidity range |
10% RH to 95% RH ( As per requirements) |
|
Illumination |
Optional Light / Dark control system comprising of fluorescent lights & control system. |
|
Test Cycles |
Control system with memory to preset test cycles as per requirements. |
|
Heat / Cool Rates |
Heat/Cool rates customized to meet user requirements. |
|
Display |
LED/LCD display. |
|
Controller |
Microprocessor/Microcontroller based Controller. |
|
Data memory & print |
Optional data memory & print interface or added with printer facility. |
|
Alarms |
Customized alarm system to warn various parameters. |
|
Seed Germinator Construction |
|
|
Outer Panels |
Outer panels are made of GI coated/ CPRCA sheet/Stainless Steel |
|
Interior Panels |
Interior panels are made of Stainless Steel |
|
Door |
Standard hinged door with Double gasket seal between the door and the cabinet increases system efficiency. |
|
Insulation |
Polyurethane foam insulation with a thickness of 50mm |
|
Shelves/Trays |
Perforated Stainless steel Trays. (As per requirements). Stainless steel trays lift out for easy cleaning. |
|
Reservoir drain |
Recessed Reservoir drain, with convenient drain hose, is easily accessible and a screened based prevents rodent infestation. |
|
Castors |
Castors for minimal effort mobility |
|
Seed Germinator Heat / Refrigeration system |
|
|
Heating system |
Level, constant heat is continually maintained through a water media, by specially designed high purity magnesium oxide and helically wound nickel-chrome wire heating elements. Elements are totally enclosed for efficient heat transfer and operator safety. The warm air is evenly distributed throughout the chamber through efficient motor fans ensuring a very good temperature sensitivity. |
|
Refrigeration system |
SPENCERS superior refrigeration system with optional Backup refrigeration system. Uniform refrigeration is maintained through the use of air-cooled, high torque, hermetically sealed condensing unit. High quality cooling system components include: efficient fan circulation evaporator coil with thermal expansion valve, moisture-liquid indicator, filter drier, heat exchanger, and pressure control valve. All refrigerant lines are copper and fully insulated. |
|
Compressor |
Heavy duty Air-cooled compressor. The compressor is distinguished by its excellent performance, low noise level (<60dB) and minimal vibration. |
|
Condenser |
Highly efficient condenser with automatic condensate evaporating system. |
|
Evaporator |
Internal evaporator system Forced draught |
|
Refrigerant |
Non-CFC/HCFC environmental friendly based on compressor capacity. |
|
Air Circulation |
Forced air circulation to maintain chamber uniformity. |
|
Seed Germinator Air-Humidity Circulation |
|
|
Humidity System |
Unique forced air circulation design maintains an even, continuous, moist airflow throughout the cabinet. Perforated trays further enhance even humidity distribution to testing samples. Self-contained stainless steel water reservoir in each chamber assures a relative humidity of 90%. Temperature variation between trays is ±0.5° C, top to bottom. |
|
Seed Germinator Control System |
|
|
Control System Standard |
The standard control system consists of Micro-processor based independent temperature controllers for Heat, Cool & Humidity mode with LED/LCD display. The illumination is controlled through solid state cyclic timer to control the photoperiodic cycle of the chamber. Optional alarm system for various parameters. |
|
Control System Advanced |
The advanced control system features robust PID Controllers with process control settings or micro-controller/Micro-processor based Control system. The control system has various optional features such as LED/ LCD Display Printer Report Program, Data Acquisition Program, Timer, Light control, Adjustable alarm limits, and Process cycle settings etc. customized to meet end user requirements. |
|
Power Supply |
220 volts,50 Hz / 110 volts,60Hz. |
