Speed Switch RevMonitor

Listing ID #3790475

  • IP rating for protective  structure IP67 for proximity switch, IP20 for transducer
  • Detectable speed range 2.0 to 36,000 rpm
  • Max. detectable distance 10mm/ 14mm*
  • Output contacts Normally open (N.O.) contactx2
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Retailer
  • Year of Establishment 1959

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Max. detectable distance 10mm/ 14mm*
  • Power source 24 VDC ±5%, 20 to 240 VAC, 50/60 Hz
  • IP rating for protective  structure IP67 for proximity switch, IP20 for transducer
  • Detection accuracy ±1% of benchmark speed or 0.5 rpm, whichever is larger
  • Output contacts Normally open (N.O.) contactx2
  • Contact capacity 6A at 24 VDC/6A at 250 VAC
  • Allowable temperature -25°C to +70°C for proximity switch -10°C to +60°C for transducer
  • Timer 0 to 999 seconds
  • Detectable speed range 2.0 to 36,000 rpm

Description

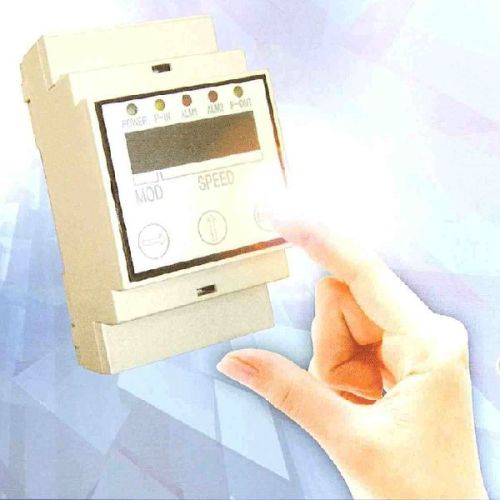

"RevMonitor" is the Speed Switch can automatically record the current revolution speed by simply pressing the MOD button.
If the speed drops 5-10% from the recorded speed, "RevMonitor"will output an alarm signal.
"RevMonitor" is applicable for a wide variety of application such as the detection of adnomal revolition of transfer conveyor of food production line,kneading machine, mixer etc.and chain breakage of bucket conveyor.
Easy installation and no complicated setting required.



  • FEATURES
  • No adjustment required

No adjustment required because  the RevMonitor automatically records the current revolution speed of the machine shaft as a benchmark

  • Safe monitoring

After setting the transducer to the normal speed, the actual speed of the machinary can be monitored remotely

  • Low maintenance

No need to worry about wear and tear caused by friction, because the speed is monitored without direct contact machines





  • APPLICATIONS
  • Screw feeders

For early detection of mechanical loss

  • Bucket conveyors

For detection of chain break

  • Industrial mixers

For verification of the number of revolutions

  • Transfer conveyors

For verification of actual conveyors speeds
