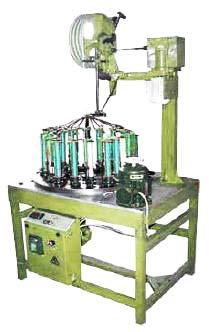

The availability of Solid Cord Braiding Machine with optional aluminum enclosure and Meter Counter makes the operations more easy and effective than ever before. The perfectly fabricated Solid Cord Braiding Machine automatically gets shut off in the case of broken end as well as empty bobbin. Attributes :

• Overload motor protection
• Vertical Axis and carriers
• Heat treated
• • braided plate
  • track
  • horn gears
  • horn plate
  • • Line forward reverse jog
    • • Used In :
        • Climbing rope
        • Rope for bigger size
        • Sleeving
        • Technical Specifications DescriptionBMSC-109-100BMSC-112-100BMSC-118-100BMSC-209-100BMSC-212-100BMSC-218-100Length (L)145012901530131015001150Depth (D)450400410380430490Height (H)135013501350135014001400No of Heads120604030302Carriers per Head030913172125Horn Gear Speed300300300300300300Bobbin Size42x12042x12042x12042x12042x12042x120Control Volume135135135135135135Carrier Tension1 N ~ 10 N1 N ~ 10 N1 N ~ 10 N1 N ~ 10 N1 N ~ 10 N1 N ~ 10 NMotor (Ph Kw V)3 1.10 4153 1.50 4153 1.50 4153 2.9 4153 2.1 4153 2.9 415OptionTake off on DrumStandardStandardStandardStandardStandardStandardEmpty Bobbin ControlStandardStandardStandardStandardStandardStandardMeter CounterOptionOptionOptionOptionOptionOptionHousing with Safety DoorsOptionOptionOptionOptionOptionOptionInfinitely Variable Speed ControlOptionOptionOptionOptionOptionOption
