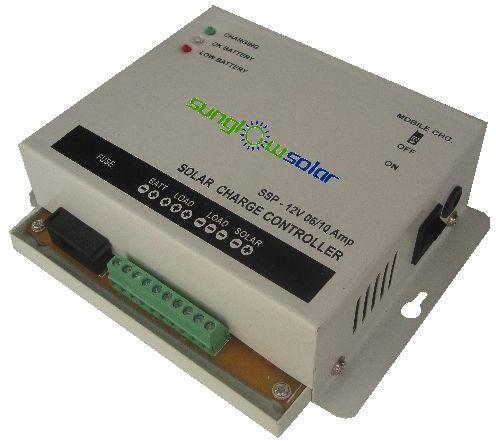

Solar charge controller forms an essential component of virtually all solar power systems that utilize batteries. The charge controller is used to regulate the current flowing from the solar panels to the batteries. These solar controllers prevent the battery from the damages caused by overcharge and disconnect the battery in case of severe discharge by shutting of loads. Sun Glow Solar’s charge controllers are specially designed to improve the battery performance and increase the life.

Key Features :

• A energy efficient controller for rural/urban solar charging system
• Low Power Load Controller and PWM solar charger in a single Unit
• Keeps battery healthy for longer period
• Optimum utilization of Solar Power
• Optional Dawn/Dusk Operation with Timer
• Provision for Temperature Compensation
• Low PV to Battery Drop
• Easy Installation
• Simple Handling

Technical Specifications :
• Charging Method : CC-CV
• Charge Control : PWM
• Over Load Current : >10A
• Load disconnect battery voltage : 11 ± 0.2 volts
• Load reconnect battery voltage : 12.5 ± 0.2 volts or
• Constant Charging Voltage : 14.5 ± 0.2 volts or as required
• Max Load Current : 3 X reted Currnet
• Display Indications : LED ( Charging,Low Battery,Ok Battery)
• Connection : Screw Type Connector for 4 Sq mm wire
• Installation : Table / wall Mounting
• Box : MS sheet box with non weatherproof power coating
• Cooling : Natural air cooled
• Ambient Temperature : -20°C to +50° C
