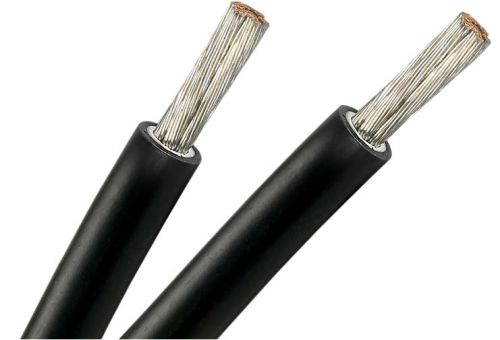

Contact SupplierThese cables are especially designed for use in photovoltaic applications. They provide the optimal cable connection between the solar cells and from the solar cells to the inverter or dc main cable.
Onductor : class 5 flexible tinned copper according to
din vde 0295,iecen 60228
insulation : halogen free cross – linked compound
sheath : halogen free cross – linked compound
sheath colour : black, red, blue, brown and grey available on request
voltage rating : ac : 6001000v, dc : 9001800v
temperature rating : -40°c to +90°c
minimum bending radius : fixed : 4 x overall diameter,
flexing : 5 x overall diameter
rated voltage uou : 0.61kv ac – 0.91.8 kv dc
max. Voltage umax : 1.8kv dc (conductorconductor,
non earthed system, circuit not under load)
max temperature at conductor : +120°c (for 20000 h)
test voltage : 6.5kv ac according to en 50395
