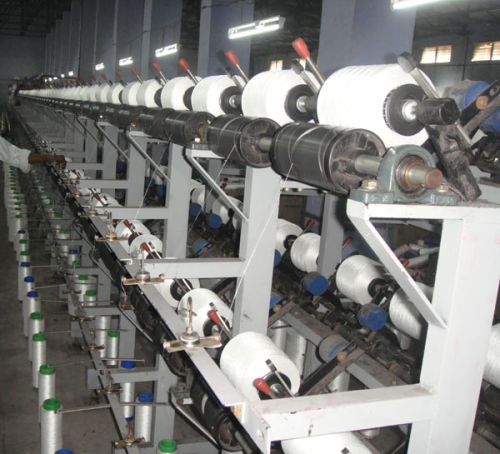

Soft dye package winder

Listing ID #4069479

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Special Features Sturdy and rigid construction for vibration free operation. New concept of double deck frame both side to accommodate 8 drums per section, so substantial space saving on floor....

View More Details

Send Enquiry

Product Details

Special Features

Sturdy and rigid construction for vibration free operation.
New concept of double deck frame both side to accommodate 8 drums per section, so substantial space saving on floor area.
Machine is designed to wind cotton, staple and synthetic yarn to produce soft wound package.
Universally approved "Metal Drums or Backlight Drums" .
The accelerating pressure reduction of the package through dead weights compensates the increasing pressure of the package to the drum with increasing diameter and results in desired uniform density package.
Spindle less cradle to hold s.s. dye spring and double arm package holder (mandrel) with bearings & rubber rings to prevent direct contact of metal on drum.
Double disc yarn tension device with self threading guide wires and high quality ceramic.
Two separate electric motors for independent drive of each side of machine to drive drum shaft and gearing system. The traverse motion is achieved through the drum shaft.
Cradle can accommodate dye spring or perforated tube / cone.

Data	Parameter
Machine Arrangement	Double Sided Double Deck
No. Of Winding Heads	48 To 240
No. Of Winding Heads Per Section	8
Section Pitch (mm)	7 20
Type of Winding	Random
Yarn Traverse	6" / 152 Mm , 8" / 200 Mm and 10" / 250 Mm
Supply Package Type	Cheese / Cone
Produce Package Type	Dye Spring / Perforated Tube / Steal Tube
Package Destination	Dyeing
Produce Package Diameter	200 Mm Max.
Winding Speed (mtr. / Min.)	350 Min. / 450 Max.
Height Of The Machine in mm	1370
Width Of The Machine in mm	1220
Drive Motor End Lg. (mm) /Sogging Attachment	700
No. of section	15	18	21	24	27	30
No. of Drums	120	144	168	192	216	240
Length of M/c. in (Ft.)	38	45	51.5	58.5	65.5	72.5
Main Drive Motor (HP)	4.0	4.0	4.0	4.0	6.0	6.0

Company Details

Established in the year 1982 , We Jay Bhavani & Co. , have one of the premium name in manufacturing and supplying an impeccable range of Textile Machines. Our machines are widely recommended for their easy installation, trouble free working, longer functional life and precision-engineering. Moreover, these machines find extensive application in numerous garment, textile and fashion industries. Our professionals fabricate these machines using optimum quality material and other spare parts. This all the perfection is done under the gudiance of Shree Ishwarbhai , who is the founder of 'Jay Bhavani'. After 2004, we are know as 'Jay Bhanvani Engineering' and lead by Shree Dharmeshbhai who is continue the same quality concept with new ideas in Textile Machine Industries.
We ensure that all these machines are in accordance with the global standards. Our hi-tech infrastructure facility comprises contemporary tools and equipment, which are essential for developing these machines. The quality inspectors appointed by us, conduct rigorous tests on these machines to ensure their flawlessness. Furthermore, we store these machines at our well-ventilated warehousing unit, which is spread over a vast area. Wide distribution network sets by us, makes sure to deliver the consignments at clients' destination within the limited time frame.
