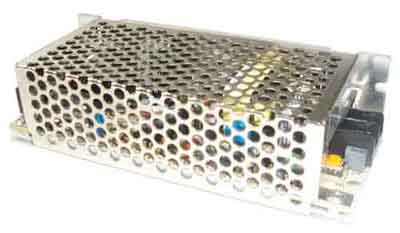

Smps Power Supplies

Listing ID #4302007

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features: Universal AC input/ Full range High Efficiency, and High reliability Output protections: SCP/OVP/OPP/OLP Wide operating ambient temperature (-20℃~70℃) All using 105℃ long life electrolytic capacitors 100% full load burn-in test 2 years warranty

View More Details

Send Enquiry

Product Details

Specifications:

Model			PD-25-S3.3	PD-25-S5	PD-25-S12	PD-25-S15	PD-25-S24
Output	DC Output		3.3V	5V	12V	15V	24V
	Rated Current		6A	5A	2.1A	1.7 A	1.1A
	Current Range Note 2		0-6A	0-5A	0-2.1A	0-1.7A	0-1.1A
	Ripple and Noise Note 2	0~70℃	80mV	80mV	120mV	120mV	120mV
		-20~0℃	80mV	80mV	120mV	120mV	240mV
	Voltage ADJ. Range		±10% of rated output voltage
	Voltage Accuracy		±2.0%	±2.0%	±1.0%	±1.0%	±1.0%
	Line Regulation		± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
	Load Regulation		± 2.0%	± 2.0%	±1.0%	±1.0%	±1.0%
	Set-up Time		＜2.0S (120Vac input, Full load); ＜1.0S (230Vac input, Full load)
	Hold up Time		＞14mS(120Vac input, Full load); ＞30mS(230Vac input, Full load)
	Temperature Coefficient		±0.03%/℃
	Overshoot and Undershoot		<5.0%
Input	Voltage Range		88Vac~264Vac
	Frequency Range		47Hz~63Hz
	Efficiency ( Typical)		70%-120	75%-120	80%-120	81%-120	83%-120
			71%-230	77%-230	82%-230	83%-230	84%-230
	AC Current (max.)		1.60A	1.60A	1.50A	1.50A	1.50A
	Inrush Current (Typical)		30A@120Vac; 50A@230Vac Cold start
	Leakage Current		<3.5mA
Protection	Over Power		105%~150% of rated output current, Constant power
	Over Current		105%~150% of rated output current, Constant current
	Over Voltage		105%~150% of rated output voltage, Constant Voltage
	Shorted Circuit		Long-term mode, auto recovery
Environment	Operating amb. Temp. & Hum.		-20℃~70℃; 20%~90%RH No condensing
	Storage Temp. & Hum.		-40℃~85℃; 10%~95%RH No condensing
Safety & EMC (Node-3)	Safety Standards		GB4943-2001; EN60950-1：2006
	Withstand Voltage		Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA
	Isolation Resistance		≥100M ohms
	Harmonic Current		Compliance to EN61000-3-2,-3
	EMS Immunity		Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204, light industry level,criteriaA
	EMI Conduction&Radiation		Compliance to EN55022(CISPR22) ClassB
Others	MTBF (MIL-HDBK-217F)		More than 100,000Hrs (25℃, Full load)
	Dimension (LWH)		93×51×28mm
	Packing		48PCS/CTN,G.W:10.4kgs
	Cooling method		Cooling by free air convection
