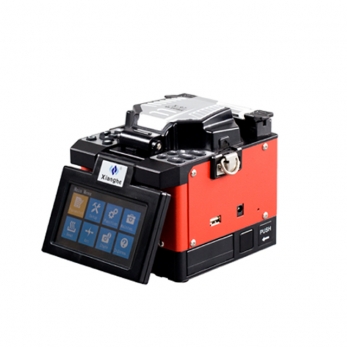

Smart FTTH Fusion Splicer

Listing ID #3904916

Get Latest Price

Storage of splice result4000 results
Splicing program40 groups
Fiber view magnification250X(X or Y view), 125X(X and Y view)
Power supplyAdaptor, input: AC100-240V(50/60HZ)
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Interface GUI menu interface, easier operation
Fiber count Single
Return loss >60db
Splicing program 40 groups
Applicable fiber dimensions Cladding diameter: 80 -150μm, Coating diameter: 160 -900μm
Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10âï½+50â;Wind speed: max 15m/s
Auto-heating Available
Tension test 1.8-2.2N
Storage of splice result 4000 results
Typical splicing time 8 seconds
Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Power supply Adaptor, input: AC100-240V(50/60HZ)
Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor
Operate mode Manual, Automatic
Fiber view magnification 250X(X or Y view), 125X(X and Y view)
Dimension 149mm(L)x120mm(W)x127mm(H)
Weight 1.9kg including battery
Terminals USB 2.0 port, for uploading splice results and upgrading software
Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Battery capacity 5800mAh, typical 180 cycles(splice and tube heat), pluggable inner Li-battery
Electrode life More than 4000 ARC discharges, can be replaced conveniently
Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Tube heating time 26 seconds for 60mm and 40mm shrinkable sleeves
Loss evaluation Available
