Contact SupplierIt includes the following components.
Standard Accessories:Â Boring Bar, Motor Pulley, Counter V-Belt
Extra Accessories: Rotory Table with 36.1 Ration Diameter 250 mm., Electric Motor, Switch, True Chuck, V-Belt.

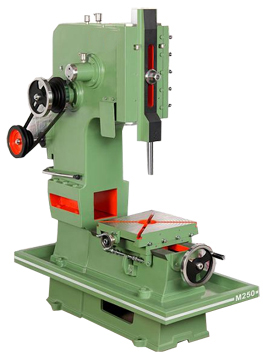

All the parts shown in the photograph are not included in Standard Accessories.
TECHNICAL DATA | M 250 | M 150 | M 305 |
Adjustable Stroke | 10 to 250mm | 10 to 150mm | 10 to 305mm |
Longitudinal Movement | 230mm | 200mm | 330mm |
Cross Movement | 230mm | 110mm | 150mm |
Speed Adjuctment | 3 Speed | 3 Speed | 3 Speed |
Ram Adjustment | 250mm | 150mm | 305 mm |
Electric Motor | 1.5HP | 1 HP | 2 HP |
Weight (Approx.) | - | - | 500kg. |
