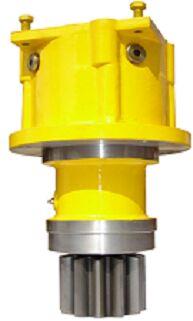

Slew Drives

Listing ID #4269921

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

General Information These drives consist of a planetary gear unit having compact dimensions, robustness and versatility. The unit is equipped with a hydraulic fails safe wet type multi-disc brake....

View More Details

Send Enquiry

Product Details

General Information

These drives consist of a planetary gear unit having compact dimensions, robustness and versatility. The unit is equipped with a hydraulic fails safe wet type multi-disc brake or electromagnetic brake. The brake is released hydraulically or electrically. Input prime mover can be hydraulic, air or electric motors.

Applications

Excavators
Truck mounted concrete pumps
Mobile cranes
Tower cranes
Drilling machines
Dock cranes & Deck cranes
Construction cranes & conveyors
Loading & cargo handling cranes
Access platforms

Drive Information

Diameter Range : 150 to 400 mm
Reduction Ratio : 10 approx.
Torque rating : 5000 NM.
Power Rating : 037 kW to 37 kW

General Information

Applications

Excavators
Truck mounted concrete pumps
Mobile cranes
Tower cranes
Drilling machines
Dock cranes & Deck cranes
Construction cranes & conveyors
Loading & cargo handling cranes
Access platforms

Drive Information

Diameter Range : 150 to 400 mm
Reduction Ratio : 10 approx.
Torque rating : 5000 NM.
Power Rating : 037 kW to 37 kW

Design Features

All the parts are designed and manufactured to high quality standards to perform under intended service. Output housing is made from cast steel that conforms to IS standards.
All the gear parts are manufactured from high alloy steel. Optimized for best possible tooth flank and root load capacity and minimum sliding speeds. Externally toothed gears case hardened and ground, internal gears heat-treated and nitrides.
High torque capacity achieved by careful selection of materials, heat treatment and geometrical design of the gears calculated in
Accordance with ISO Standards.
All standard parts such as bearings, seals, hardware are procured directly from reputed manufacturers for genuiness and cost effectiveness.
The Planetary gears of these Slewing units are also used in the Cypla Winches, the Track Drives, so that the complete drives are of the same construction and have common parts.

Company Details

Cyclo Transmissions Ltd. has proven to be leaders in Power Transmission Products for last 35 years. Quality and trouble-free performance of our products has been proved by their wide acceptance in the industries like Aluminium, Chemical, Cable Cars, Port Trusts, Steel Plants, Textile Machinery, Heavy Engineering, Power Plants, Sugar Plants, Flour Mills, etc.
Sensing the Market requirements CYCLO has always responded with a rigid product and created a simply unmatched range of speed reducers. Our Product Range includes Cycloidal Drives, Planetary Drives, Torque Limiters, Shaft Mounted Drives, Winches, Track Drives, Slew Drives, Pump Drives, Drum Motors and Custom-Built Drives to the specific requirement of the customer. The entire Product range is produced endogenously with zero import contents.
