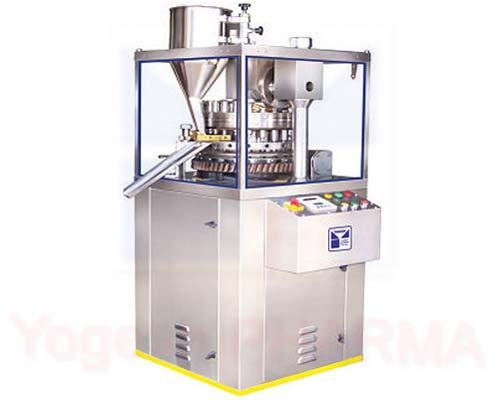

Contact SupplierModels available in 16 STN. /20 STN. & 23 STN.Design as per GMP Standards.Suitable for Regular Batch Size.Optional Force Feeder and AC Frequency Drive provided.Available in D & B ToolingSafe and simple to operate and easy to maintain.
MODEL | Y-Mek TCM-D4-16 | Y-Mek TCM-D4-20 | Y-Mek TCM-D4-23 |
---|---|---|---|
Station | 16 | 20 | 23 |
Tooling | D | D | 'DB' |
Output Tab. / Hour | 40,000 | 50,000 | 57,960 |
Max. Dia | 25 mm | 25 mm | 16 mm |
Max. Depth of fill | 20 mm | 20 mm | 20 mm |
Max. Operating Pressure | 10 Tons | 10 Tons | 10 Tons |
Ele. Power | 3 hp. / 3 ph. | 3 hp. / 3 ph. | 3 hp. / 3 ph. |
