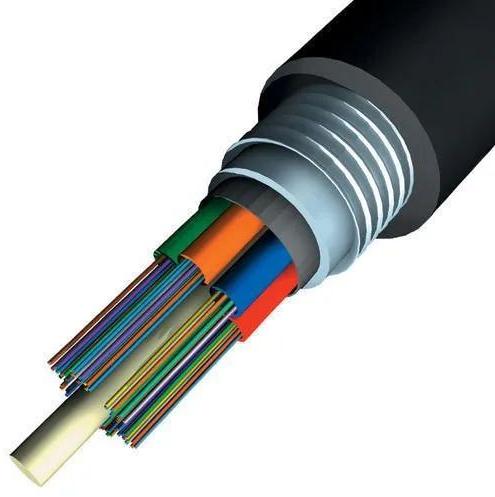

Single Sheath Optic Fiber Cable, for Home, Industrial, Feature : High Ductility, High Tensile Strength

Single Sheath Optic Fiber Cable, for Home, Industrial, Feature : High Ductility, High Tensile Strength

Listing ID #7009197

Get Latest Price

MOQ 50 Roll
Inner MaterialAluminium, Coper
ColorMulticolor
ApplicationHome, Industrial
FeatureHeat Resistant, High Ductility, High Tensile Strength
Supply Type Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Inner Material Aluminium, Coper
Color Multicolor
Application Home, Industrial
Feature Heat Resistant, High Ductility, High Tensile Strength
Type Fiber Optic Cables
Country of Origin India

Optic Fibre Cable (Single Sheath) - Uni-Tube Armoured(2F upto 48F)

One Central Poly Butylene Terephthalate(PBT) loose tube.
Optic Fibres are housed in loose tube.
Thixotropic jelly injected in loose tube with Fibre.
WST is wrapped with the loose tube to make cable water-proof.
Loose tube is covered with a corrugated SS tape / ECCS tape.
FRP rods or steel wires embedded within the HDPE jacket.
Anti-termite HDPE jacket extruded over corrugated SS tape.

Applications

High Speed Voice, video and data transmission.
Local Area Network
Local Haul Network
Fibre Channel (CATV, Multimedia, etc)

Technical Specifications From 6F To 48F Cable

Description	Typical Values
Single Mode Optic Fibre	Complying to ITU G. 652
Fibre Colour Code	Blue, Orange, Green, Brown, Slate/ Grey, White, Red, Black, Yellow, Violet, Rose / Pink, Natural / Aqua
Buffer Loose Tube Colours(Optional)	Natural, Blue, Orange, Green
Optical Performance	Attenuation @ 1310nm, ≤ 0.38dB / km, Attenuation @ 1550nm, ≤ 0.25dB / km
Mechanical Performance	Tensile Strength								Min Bend Radius	Impact	Torsion
Mechanical Performance	1W		1.3W		2.0W		2.5W		20D	50N	400N
Enviornmental Performance	Temperature								Operating	Installation	Storage / Shipping
Enviornmental Performance	Specification								-20°C to + 70° C	-20°C to + 70° C	-30°C to + 70° C
Physical	Description Cable	6 Fibre		12 Fibre		24 Fibre		48 Fibre
	Elements/Fibre count	44932		44938		1/2 x12		1/4x12
	Nom cable dia. (mm)	11.5		11.5		12.1		13.9
	Nom cable Wt. (kg/km)	128		129		146		184
	Std. Length	2/4km ±10%		2/4 km± 10%		2/4 km± 10%		2/4 km± 10%
Testing & Inspection	1. State-of-the-art testing facility. 2. As per Quality Assurance Plan / Customer requirements 3. Complete traceability at any point of time 4. Assistance on filed provided upon request.
