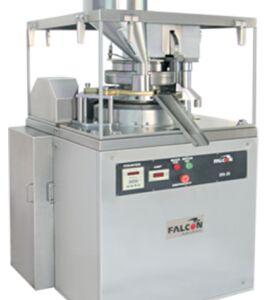

Single Rotary Tablet Press Machine

Listing ID #3819233

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

ROTARY TABLET PRESS SQUARE GMP SINGLE 16 Stn. ‘D’, 20 Stn. ‘D’, 23 Stn.‘DB’ 12 Stn. Slugging Type For veterinary Tablets Salient Features:- Single....

View More Details

Send Enquiry

Product Details

ROTARY TABLET PRESS SQUARE GMP SINGLE 16 Stn. ‘D’, 20 Stn. ‘D’, 23 Stn.‘DB’ 12 Stn. Slugging Type For veterinary Tablets

Salient Features:- Single Rotary Tablet Press Machine

In compliance with cGMP Guideline.
C.I. Body and C.I. Middle plate Paint free tablet manufacturing zone.
Turret of Special Grade S.G. Iron casting
Upper punch penetration system.
Electronic. Digital Tablet cum RPM Counter.
Inter lock switches to all Guards.
Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material.
Aluminum Turret Guards
Effective Dust Extraction Nozzles.
Imported needle roller bearing provided at the bottom of turret.
Reverse direction motion protection is provided to avoid accident.
Safe / Simple operates & Easy to Maintain.
Main motor AC VF Drive (Optional)
Force Feeder (Optional)
Auto Lubrication Pump (Optional)
Powder Level Sensor (Optional)
This tablet manufacture machine is also known as Tablet compression machine/pill press machine, which is used for Camphor Tablet, Naphthalene Ball and Salt Ball Tablets

MODEL – D4 TYPE	FALCON-16 ‘D’	FALCON-20 ‘D’	FALCON-12(SPECIAL)
Tooling	“D”	“D”	SPECIAL/Bolus
No. of Station	16 Stn.	16 Stn.	12 Stn.
Operating Pressure	12 Ton	12 Ton	12 Ton
Max. Tablet Diameter	23 mm	23 mm	40 mm
Max. Depth of Fill	20 mm	20 mm	20 mm
Upper Punch Penetration	1.5 to 8 mm	1.5 to 8 mm	1.5 to 8 mm
Main Electric Motor	3.70 kW / 3Hp / 1440 RPM / 415 V / 50 Hz / 3 Ph		5 Hp / 3 Ph
