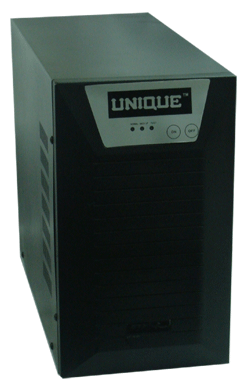

Contact SupplierPure Sine Wave Inverter:
Our Power supply is your total valuable solution of electric for small and home users.We are professional manufacturer and designer if Inverter and other power products,
NC Inverter series is a new milestone in the field of pure sine wave inverter.
Â
Our technical advantages are as follows:
Â
1) Completely controlled by CPU. These inverters are capable of driving highly reactive & capacitive loads at start up. Synchronized operation allows the transfer to be almost instantaneous.
Fast Automatic switching for continues power supply within 4 ms. When the Ac comes It will start immediately ; and when its over load, it will also lock itself at once, when you reduce the load, then it will start working automatically. For example, you don’t need to restart you PC while using it with its integrated UPS Function.
2) Short circuit Protection and Overload protection. Wide input voltage: 90 V --- 280V.
3) Chargeing function is storng, quick and stable ; the average recharging current is 10 A Mps. ( But we can make it larger, It is up to customers requirements)
4) Pure sine wave output; 220V+3%(THD
Model | NC600 | NC800 | NC1000 | NC1500 | NC2000 | NC2500 | |
Capacity | 600VA | 800VA | 1000VA | 1500VA | 2000VA | 2500VA | |
420W | 560W | 700W | 1050W | 1400W | 1750W | ||
Voltage range | 110V - 280V AC | ||||||
Input | Frequency range | 50Hz ± 5Hz | |||||
AVR | Four Steps AVR, 220V ± 10% | ||||||
Output | Inversion Voltage | 220V ± 3% | |||||
Inversion Frequency | 50HZ ± 2% | ||||||
DC Voltage | 12V | 24V | 48V | ||||
O/P Waveform | sine wave | ||||||
THD | ≤3% | ||||||
Transfer time | ≤ 4ms Automatic Transfer | ||||||
Recharge Current | 10-15 A | 15A - 25A | |||||
Transfer Efficiency | 85% | 90-96% | |||||
Protections | Protection against Short-circuit, Overload | ||||||
Communication Ports | RS 232 | ||||||
Unit Size (mm) | 372*122*195 | 397*145*215 | 460*192*335 | ||||
N.W (KG) | 6.8 | 7.8 | 10.8 | 12 | 20.5 | 23.5 | |
K.W (KG) | 7.8 | 9.4 | 12.3 | 13.5 | 22.5 | 25.5 | |
Shipping Size (mm) | 385*442*303 | 400*293*218 | 570*297*442 | ||||
2Pcs | 2Pcs | 1Pcs | |||||
Model | NC3000 | NC5000 | NC6000 | NC8000 | NC10000 | NC15000 | |
Capacity | 3KVA | 5KVA | 6KVA | 8KVA | 10KVA | 15KVA | |
2.1KW | 3.5KW | 4.2KW | 4.48KW | 7KW | 10.5KW | ||
Voltage range | 110V - 280v AC 175 - 265 VAC | ||||||
Input | Frequency range | 50Hz ± 5Hz | |||||
AVR | Four Steps AVR, 220V ± 10% Without 220V ± 10% | ||||||
Output | Inversion Voltage | 220V ± 3% | |||||
Inversion Frequency | 50HZ ± 2% | ||||||
DC Voltage | 48V | 96V | 240V | ||||
O/P Waveform | sine wave | ||||||
THD | ≤ 3% | ||||||
Transfer time | ≤ 4ms Automatic Transfer | ||||||
Recharge Current | 15A-25 A | 10A | |||||
Transfer Efficiency | 90 - 96% | ||||||
Protections | Protection against Short-circuit, Overload | ||||||
Communication Ports | RS 232 | ||||||
Unit Size (mm) | 460*192*335 | 555*360*720 | |||||
N.W (KG) | 29.3 | 34.2 | 38.5 | 56.5 | 78.5 | 108.5 | |
K.W (KG) | 31.5 | 36.5 | 40.5 | 60.7 | 82.8 | 112.8 | |
Shipping Size (mm) | 570*297*442 |
