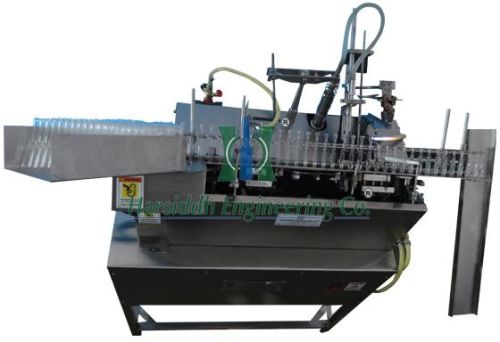

Single Head Closed Ampoule Filling Machine

Listing ID #3921789

Get Latest Price

One For Pre Heating & One for SealingRequire Gases For Sealing
Piston Pumps Type Filling (Volumetric)Contact Parts
HFS-30 CAmpoule Sizes
AvailablePower Require
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

HFS-30 C Ampoule Sizes
70 Kgs. Gross Weight (With Wooden Case)
One Sealing Nozzle
10 to 15 Ampoules / Minute (Depend on ampoules sizes) Ampoule Opening Nozzles
Piston Pumps Type Filling (Volumetric) Contact Parts
LPG & Oxygen (Mixture) Require Gases For Opening
One For Pre Heating & One for Sealing Require Gases For Sealing
Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump) Output / Minute
LPG & Oxygen (Mixture) Nitrogen Purging
Available Power Require
Available (Pre & Post) Pre Heating
From 0.5ml to 25ml in single dose Filling Type
750mm (L) X 500mm (W) X 1000mm (H) Net Weight
1ml to 25ml Closed / D Type Glass Ampoules Filling Capacity
0.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) Over All Dimensions
No.

Harsiddh Engineering Co. offers high-quality Single Head Closed Ampoule Filling and Sealing Machine with single motor customization features. The device also contains a post and pre- nitrogen flushing unit enhancing its functioning. Thanks to the pre-heating unit available with the instrument that offers perfect heating for thick glass ampoules. The equipment also features a sleep tray that helps in the classification of sealed and filled ampoules. You can use this filling and sealing tool for all kinds of open-mouth glass ampoules.

With a gross weight of almost 70 kilograms, this particular equipment features a delicate and highly functional ampoule rotating unit. Capable of filling 10 to 15 ampoules per minute, Ampoule Filling Machine possesses a filling capacity of 0.5ml to 25ml per dose. This commercial-grade machinery has a single ampoule-opening nozzle and operates on a volumetric filling mechanism. Additionally, almost all the contact parts of the following equipment are constructed from AISI 316-grade stainless steel, thus imparting strength to this sealing and filling tool. Our machines have CE certifications.

The equipment also possesses a stainless steel west-tip collector making it the perfect option for injection preparation. The machine offers superior functioning in the sterilized environments of the pharmaceutical industries as well as in the preparation of cosmetics and chemicals.

Silent Features

Compact cGMP model.
All contact parts are made from stainless steel AISI 316 material.
Single motor customized with all drives of the unit.
A delicate ampoule rotating unit attached at the ampoule opening and sealing station.
Pre & Post nitrogen flushing unit.
Pre heating unit for thick glass ampoules.
Minimum change over the ampoule size.
Sleepy tray for diversion of filled and sealed ampoules.
West tips collector made with the high quality stainless steel.
Appropriate for all open mouth glass ampoules.
