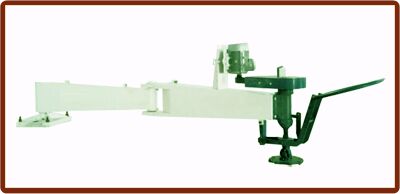

Contact SupplierSINGLE HEAD ARM POLISHING MACHINE is a Manual type polishing machine which is Basically used for polishing marble tiles & Slabs up to the maximum size of 10' X 5'. The machine has two fabricated arms which swing to each other by a bearing. The complete Arm assembly swings on column bearings. The polishing head is mounted on front arm. This is driven by 5 HP Motor. This is a single and handy machine and abrasive head can be moved to any point over the polishing area. The polishing area is guarded by water guard.
TECHNICAL SPECIFICATION | ||
1 | Max. Arm Projection | 3000 MM |
2 | Max. Size of tiles / slabs | 10' X 5' |
3 | Spindle RPM | 300 |
4 | Spindle Motor | 5 HP. |
5 | Overall dimensions of machine | 3600 X 1500 MM. |
