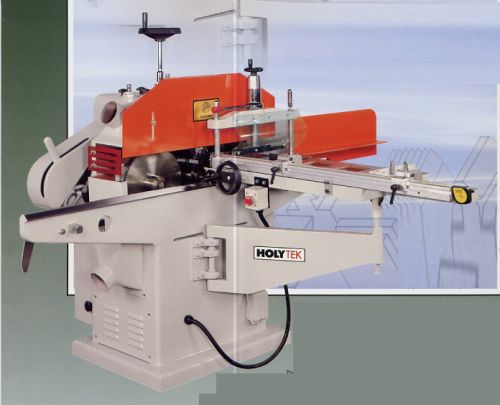

Single End Tenoning Machine

Listing ID #3911306

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features Holytek’s ST series Single End Tenoning Machine has many outstanding features. There s a choice of helical or straight cutterheads making these machines suitable for hard and soft....

View More Details

Send Enquiry

Product Details

Features

Holytek’s ST series Single End Tenoning Machine has many outstanding features. There s a choice of helical or straight cutterheads making these machines suitable for hard and soft materials alike. Both the to and bottom tenon heads can be either individually or simultaneously vertically adjusted. The saw mechanism is mounted in front of the tenon heads for cutting stock to the desired length. It can be adjusted vertically and can use a maximum 12” diameter blade. Additionally, there is a sawblade guard and dust filter that not only provides added operational safety but also prevents chips from entering into the dust collector. These are just a few of the excellent features Increase your efficiency and profit with the reliable ST Series from Holytek.

MODEL		ST-120A	ST-152A	ST-152B
Maxum Tenon Cut	length	120mm	152mm	152mm
	Width	370mm	370 mm
	Thickness	112mm	127 mm
Max. tenoning cutterhead size		?105mm (dia) 120mm (long)	?110mm (dia) 152mm (long)	?105mm (dia) 120mm (long)
Max. shaping cutter size		?10"	?10"	?63/8"
Max. sawblade diameter		?12"	?12"	?12"
Spindle Diameter	Tenon Spindle	?1"	?11/4"	?11/4"
	Cope Spindle	?1"	?1"	?11/4"
	Saw Spindle	?1"	?11/4"	?11/4"
Spindle Speed	Tenon Spindle	3400 RPM	3400 RPM	3400 RPM
	Cope Spindle	3600 RPM	3600 RPM	3600 RPM
	Saw Spindle	2800 RPM	2800 RPM	2800 RPM
Motor Horsepower	Saw & tenon head	3HP	5HP	5HP
Motor Horsepower	Cope head	2 HP	3 HP	3 HP
Sliding table area		1280 x 450 mm	1280 x 450mm	1280 x 450mm
Net weight		500 kgs	530 kgs	600kgs
Gross weight		620 kgs	650 kgs	720 kgs
Machine dimensions (L x W xH)		1680x1840x1150mm	1680x1840x1150mm	1680x1840x1150mm
Packing dimensions (L x W xH)		1700x780x1400mm	1700x780x1400mm

Company Details

Woodtech is an integrated end-to-end solutions provider for the Solid Wood, Panel Wood and specialized Wood products. Our service portfolio includes Consulting, selection and suggestion of the right machinery, preparation of layout plans, installation, testing and Commissioning, providing training to the machine operators, after sales support, repairs and supply of spares and consumables.
We are located in Bangalore or Bengaluru in India, which has gained an enormous amount of growth in both industrial and in manufacturing sector over the last 10 - 15 years. We operate from PEENYA, Industrial estate in Bengaluru, which has been considered as one of the biggest industrial estates in the entire continent of Asia. Peenya houses more than 100 corporate companies, who are engaged in providing world class services to various organizations across the world. Our location is suitable for both quality manpower and a friendly environment to function our operations in an effective way.
Our factory and office provides a beautiful environment for our staff to work efficiently. We have been highly appreciated for our consultancy services in the wood sector. Woodtech is engaged in providing a complete practical training to work on manufacture, repair, troubleshoot and to provide quality after-sale services in an efficient way.
Woodtech have forged partnerships with some of the leading machinery manufacturers in the world and are well positioned to cater to the needs of both existing and new manufacturing plants.
We design, develop and supply magnificent furniture, which helps you complete job easily and efficiently. Our foremost focus in on providing economical, modern and the cost effective equipment, which could improve your productivity and the quality of products.
Our core sectors of manufacturing includes furniture production from a solid wood, which are widely used on doors and windows manufacturing. Our solid wood products are used in floorings and other interior decoration purposes. We are engaged in manufacturing different kinds of wood products like plywoods, HDF, MDF, particle board and so on..
If you are planning to set up a Wooden furniture business or panel based products like Plywood and MDF, we would love to hear from you.
