Single Channel Digital Counter

Listing ID #3990504

Get Latest Price

Indications3 mm LED indication for Relay and serial operation.
Relay Output1 relay output , contact rating 230VAC, 1Amp operating on set-point .
Reset Control (Optional)Remote RESET of totaliser through serial port command and / or external reset signal from potential free contact.
Communication (Optional)On line PC connectivity through SERIAL port RS485 on MODBUS protocol - OPTIONAL.
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Supply 230VAC / 110VAC, + 10 %, single phase, 50 Hz
Communication (Optional) On line PC connectivity through SERIAL port RS485 on MODBUS protocol - OPTIONAL.
Power Output 24 VDC, 30 mA output for external potential free input.
Cabinet Panel mounting ABS Enclosure Size - 48 x 96 x 120 mm ( H x W x D ) Cutout - 46 x 92 mm
Input Potential free contact or 24VDC level.
Reset Control (Optional) Remote RESET of totaliser through serial port command and / or external reset signal from potential free contact.
Indications 3 mm LED indication for Relay and serial operation.
Display 8 digit - 0.3" Seven segment RED LED.
Relay Output 1 relay output , contact rating 230VAC, 1Amp operating on set-point .

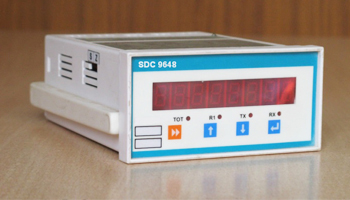

Single Channel Digital Counter

Digital Counter accepts pulse input from potential free contact or 24VDC output of proximity sensors/ encoders etc. SDC 9648 has 8 digit display so that most of the standard counting applications are catered. Scaling facility is available to display value as per process variable. Serial port RS 485 for online communication with MODBUS RTU protocol gives facility to connect the unit on SCADA. Ideal for all types of production counting/batch applications. SDC 9648 is intended to be used for all types of counting applications like production counter, event counter, digital energy counter etc

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Scan Electronic Systems was established in 1992 and since its inception it has delivered several high quality products to the Industry. The company is owned and run by highly qualified technocrats.
Scan Electronic Systems aims in providing indigenously developed high quality, innovative and economical products.
For two and half decades we have developed data acquisition systems for different industries like, Chemical, Pharmaceutical, Sugar Industry, Automobile, Meteorology, Power, Defence and Research organisations. We offer a wide range of products like process indicators, Flow Indicator Totalizer, Scanners, Data Loggers, Isolators, Converters, Protocol Converters ( Gateways ), SCADA Systems, PC based monitoring systems, Analog / Digital to Serial transmitters, Temperature Indicator.
Scan Electronic Systems is best known for its Universal Input Scanners / Data loggers. We are proud to be the Pioneers in introducing Universal Input Scanners / Data loggers in India.
Our latest product series named FALCON is another step ahead in field of Process Monitoring. Now you can watch your process from anywhere in World through Internet.
Scan Electronic Systems has a very strong technical background and has been continuously giving innovative solutions to the Industry. We have developed many micro controller based special purpose machines for various applications in Defence, Automobile Industry, Refrigeration and Compressors, Consumer Electronics Industry etc.
