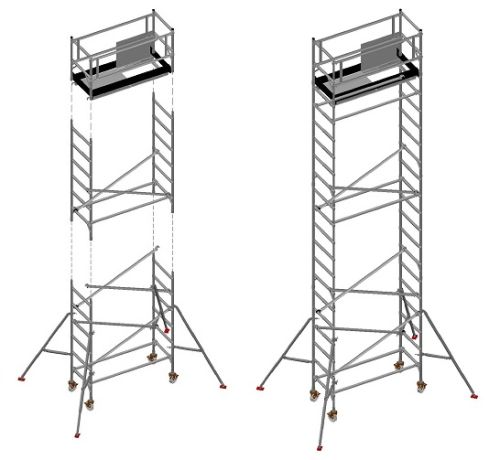

Single Width Stand Alone Modular Access Tower (SW)

Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on anti skid rungs.

Maximum Heights*

• Working upto 14 m
• Overall upto 13 m
• Platform upto 12 m

Safe Working Loads

• On Platform 275 kg UDL
• On Structure 600 kg UDL

Accepts

• Cantilever platform options
• Adjustable leg with base plate
• Rolling outriggers

Single Width Stand Alone Modular Access Tower with Ladders (SW)

Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on internal ladders and intermediate platforms.

Maximum Heights*

• Working upto 14 m
• Overall upto 13 m
• Platform upto 12 m

Safe Working Loads

• On Platform 275 kg UDL
• On Structure 600 kg UDL
• On Ladder 100 kg UDL

Ladder Specifications

• Inclination - 150
• Tread - 44 mm 'D' rung

Accepts

• Cantilever platform options
• Adjustable leg with base plate
• Rolling outriggers

Single Width Stand Alone Modular Access Tower (SW)

Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on anti skid rungs.

Maximum Heights*

• Working upto 14 m
• Overall upto 13 m
• Platform upto 12 m

Safe Working Loads

• On Platform 275 kg UDL
• On Structure 600 kg UDL

Accepts

• Cantilever platform options
• Adjustable leg with base plate
• Rolling outriggers

Single Width Stand Alone Modular Access Tower with Ladders (SW)

Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on internal ladders and intermediate platforms.

Maximum Heights*

• Working upto 14 m
• Overall upto 13 m
• Platform upto 12 m

Safe Working Loads

• On Platform 275 kg UDL
• On Structure 600 kg UDL
• On Ladder 100 kg UDL

Ladder Specifications

• Inclination - 150
• Tread - 44 mm 'D' rung

Accepts

• Cantilever platform options
• Adjustable leg with base plate
• Rolling outriggers
